Most enclosure buyers have been burned at least once. The prototype is beautiful. The production run is late, the finish blisters, and the drawing you signed comes back with tolerances nobody checked. This case study walks through a recent custom metal enclosure project at our Nanpi plant — the process route, the inspection points, and the numbers that mattered — so you can compare it against your own supply chain.

In short: a European OEM in the industrial control sector sent us a housing drawing on a Tuesday. Six weeks later, 200 powder-coated enclosures were packed and staged for shipment, every unit CMM-inspected and documented under ISO 9001:2015.

The Project

The part was a floor-standing electrical enclosure, approximately 1,200 × 600 × 400 mm, fabricated from 1.5 mm and 2.0 mm cold-rolled steel. What made it non-trivial was not the size but the detail:

• Multiple cut-outs on three faces for connectors, ventilation and a display bezel
• Threaded PEM studs in thin sheet — pressed in, not welded, to keep the interior flat
• Two-tone powder coating with a masked logo area
• Flatness and hole-position requirements that ruled out “good enough” assembly

The customer had received quotes from four suppliers. Two were trading companies that would outsource the job. One offered a price that looked too good and could not name its press tonnage or laser power. XCWY was the only supplier that answered with a process route and a tolerance plan instead of a price sheet.

How We Built It

Stage 1 — Laser Cutting

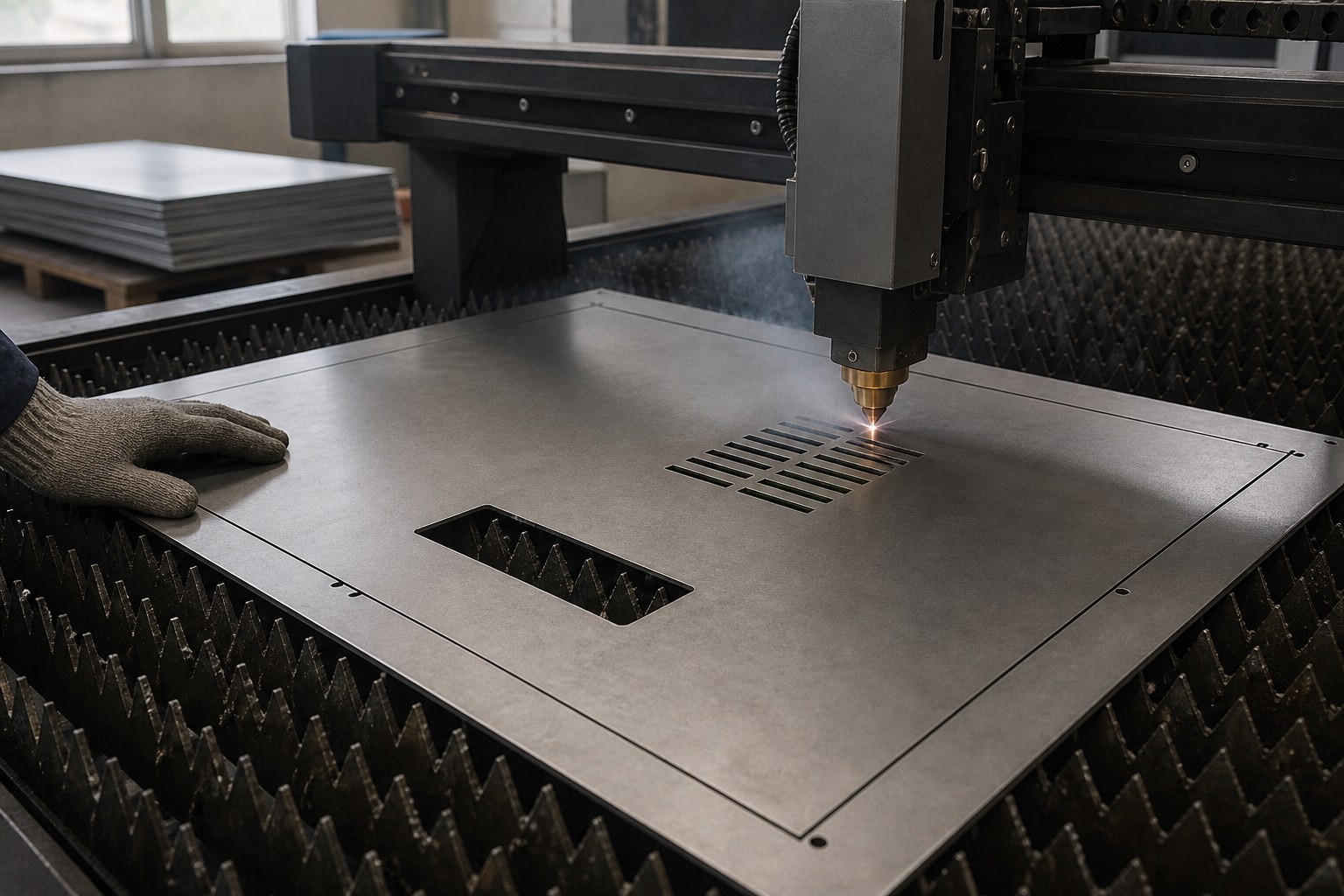

The 1.5 mm and 2.0 mm steel was cut on our 12,000 W fibre laser. Profile accuracy holds ±0.05 mm, which matters here because the display bezel cut-out has to accept a drop-in part with no visible gap. Corners were inspected on the first article; the laser programme was locked after the first two blanks passed.

Stage 2 — CNC Bending

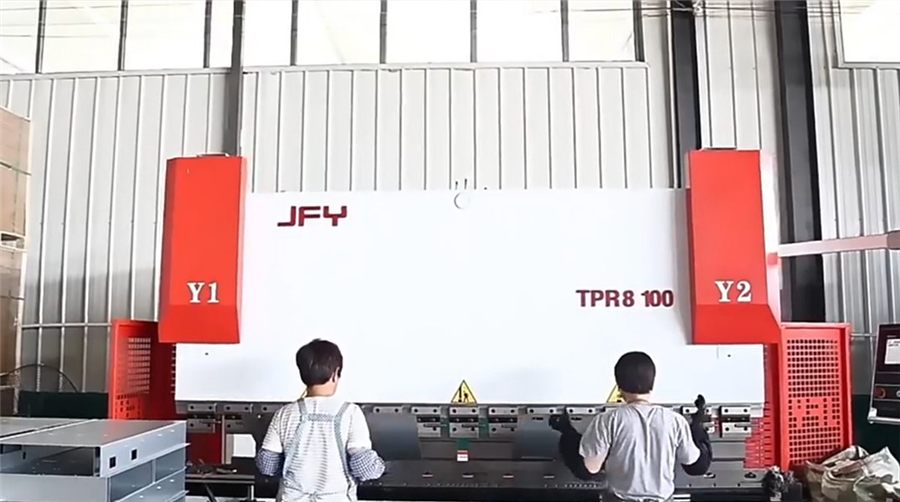

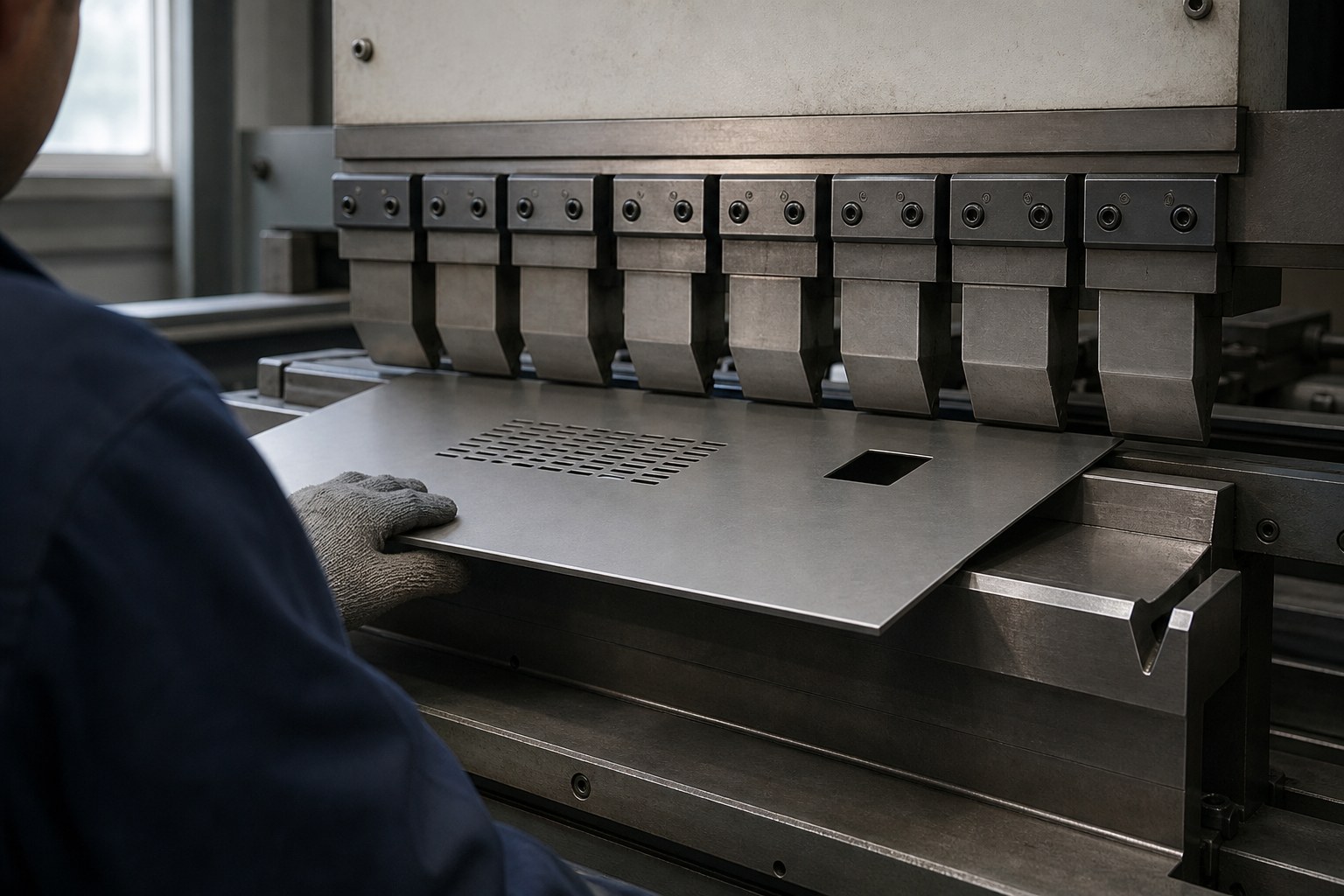

Bending ran on a JFY TPR8-100 press brake: 100 tonnes, 3,200 mm bed, ±0.5° on angle. The enclosure body is a single folded blank — one piece, four bends, no corner welds on the main seam. Flat patterns were developed against our own tooling, so the folded part actually fits the first time.

Stage 3 — Welding and Hardware

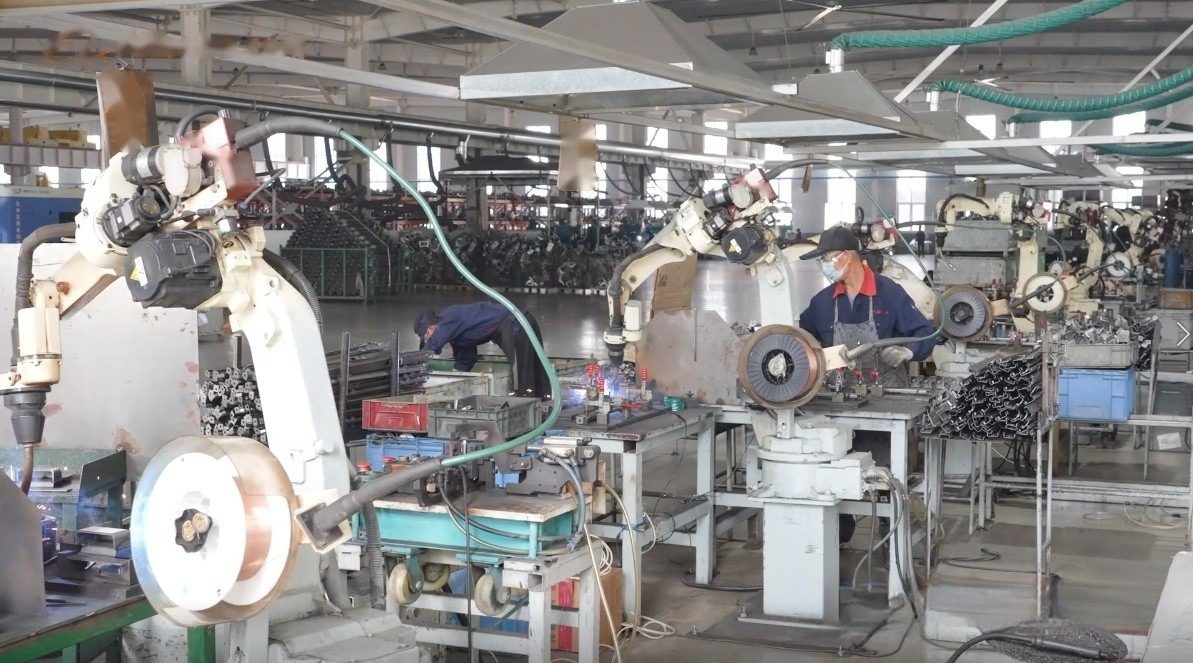

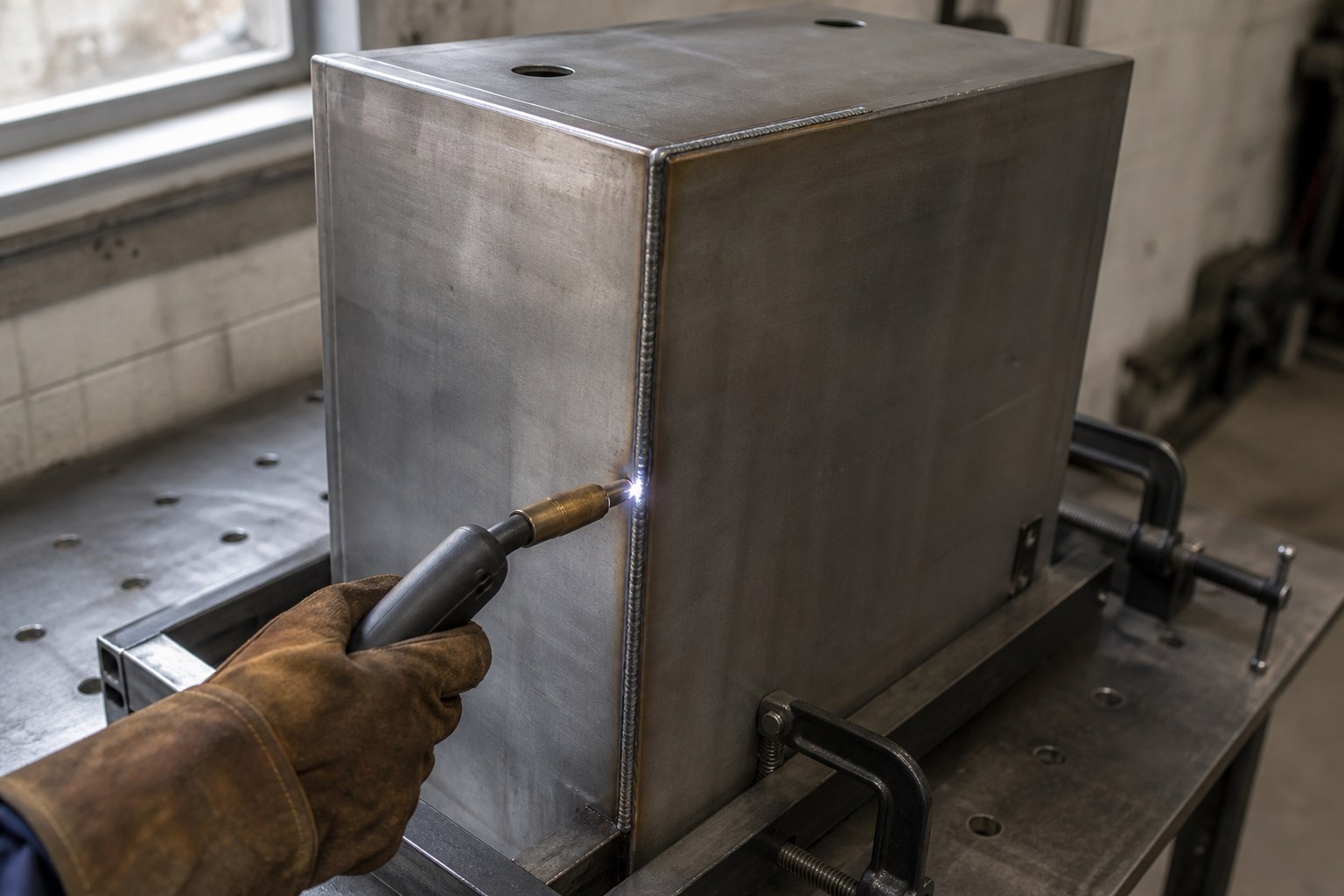

Where the design needed assembly, we used MIG welding on the frame sub-assemblies and laser welding where distortion was a risk. PEM studs were installed with the correct tooling so the sheet stays flat — a detail that prevents ghost threads and press-fit failures downstream.

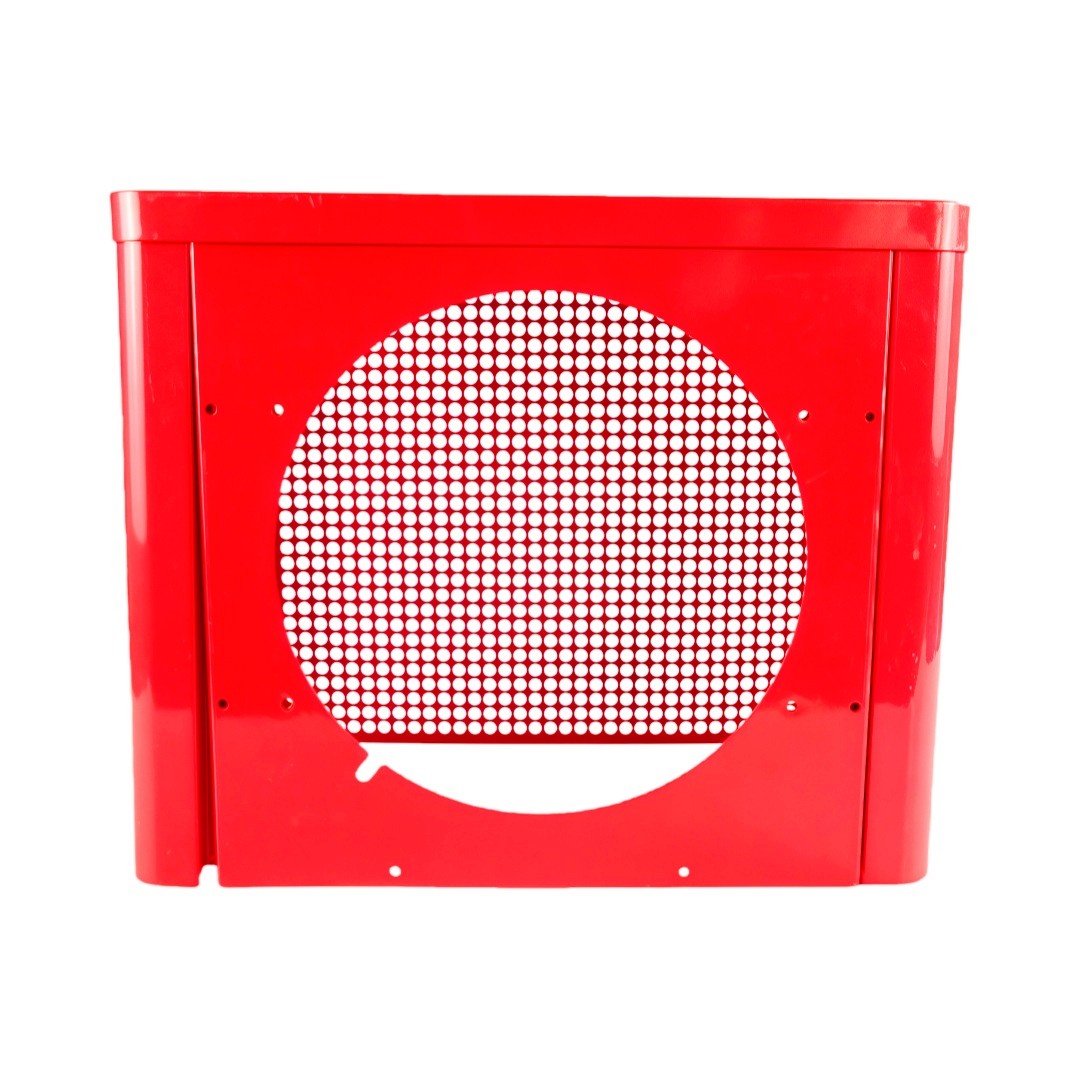

Stage 4 — Surface Finishing

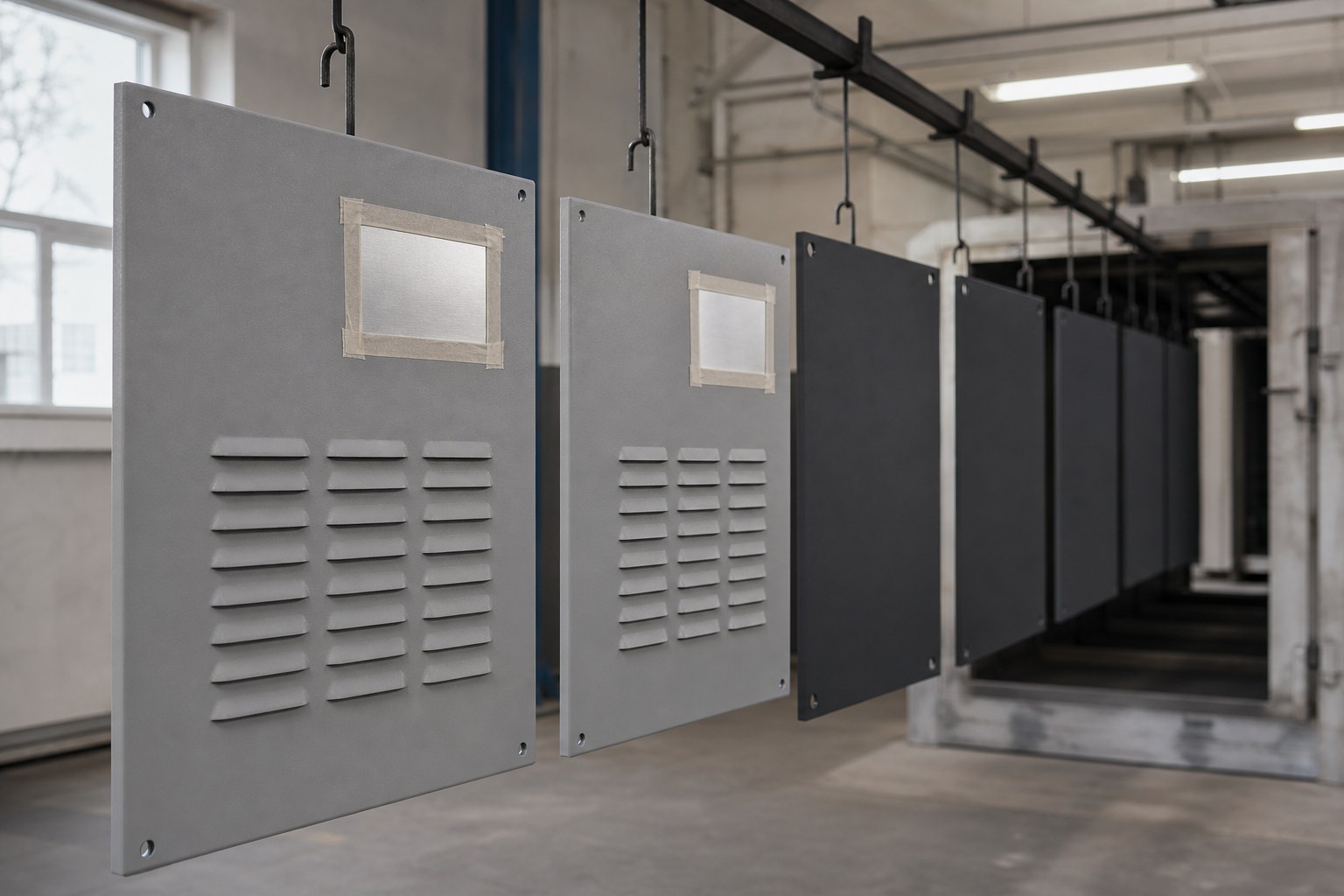

The enclosures were degreased, pre-treated and powder coated in a two-tone scheme with a masked logo. Coating thickness was verified before packing, not assumed. For this customer we also supplied the EN 10204 material certificates with the batch. See our surface finishing specifications for the full range.

Stage 5 — Inspection and Packing

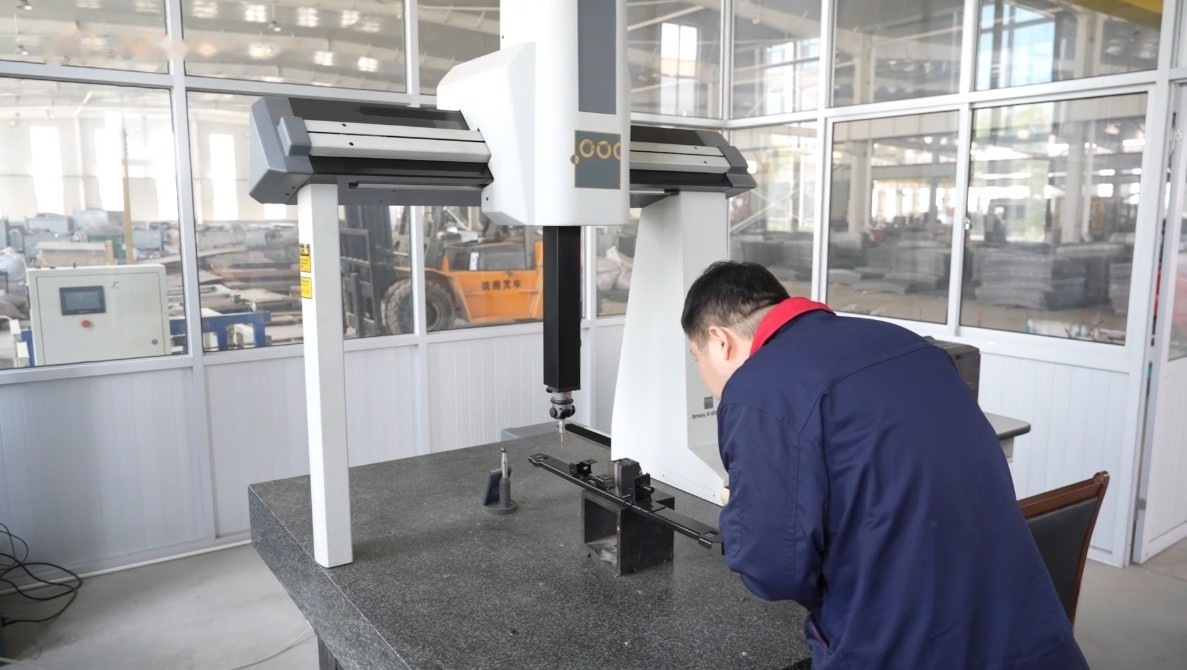

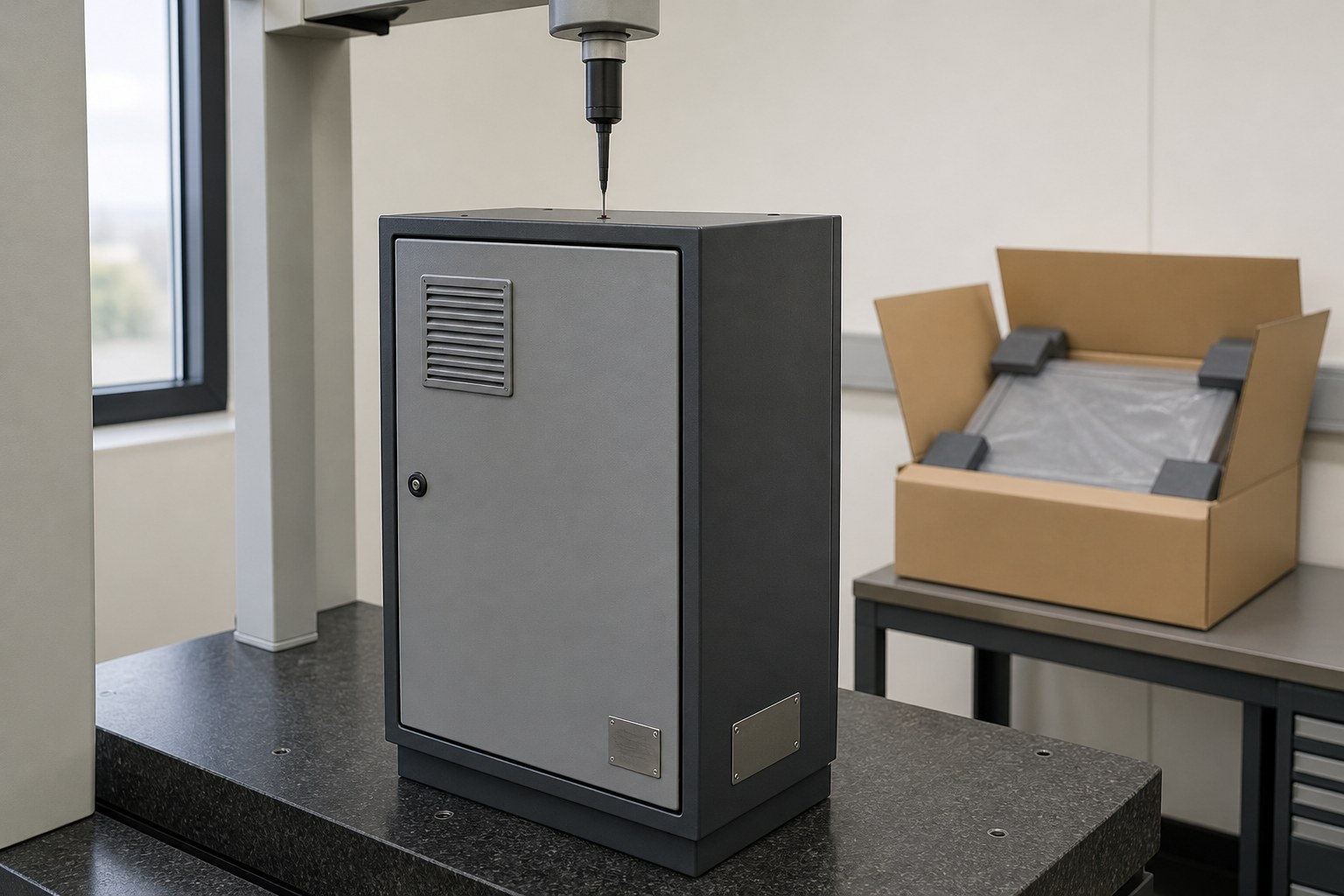

Every unit was checked on a coordinate measuring machine for the critical hole positions, then given a final visual pass. Units were wrapped and packed in export cartons with corner protection — the customer drops them straight into their own distribution.

Engineering Details That Decide Whether It Assembles

Enclosure projects rarely fail on the obvious things. They fail on details that only surface at assembly, after the tooling is cut and the finish is on. These are the three we settle before a programme is released.

Hole position matters more than hole size. A pierced hole that is two tenths of a millimetre over size still accepts a screw, a gland or a PEM stud. The same hole in the wrong place does not. Enclosure faults at a customer line are almost always positional: a display bezel that sits proud on one side, a gland plate whose holes will not line up with the internal rail, a door striker a millimetre off centre. Cutting on the 12,000 W fibre laser holds ±0.05 mm on the profile, which is what lets a drop-in part sit flush instead of being dressed at assembly. Positional tolerance is the first thing we quote back when a drawing does not specify one.

Pressed studs or welded studs. In 1.5 mm and 2.0 mm sheet this is not a cosmetic choice. Welded studs pull the sheet and leave heat marks on the visible face; on a two-tone powder-coated enclosure those marks are permanent. Pressed PEM studs sit flush, keep the interior flat and give a repeatable thread, which is why this project used them for the internal mounting points. The trade-off is that press-fit demands the correct hole diameter and the correct installation tooling. A stud pressed into an oversized hole spins under torque long before it fails visibly.

Flatness is the specification nobody writes down. Flatness decides whether a gasket seals, whether a door lines up and whether a panel sits flush against a frame. It is also the property most easily lost in welding, so on this project laser welding was used where heat input would have pulled the sheet out of flat. If the drawing calls for a seal or a flush-mounted panel, put a flatness figure on it. Without one, the fabricator has nothing to hold and nothing to inspect against.

Quality Control — Where Most Suppliers Go Quiet

• ISO 9001:2015 quality records, registration 34025Q30296R0S, verifiable at the CNCA registry
• CMM reports for hole positions and flatness on sampled units
• EN 10204 material certificates from the steel mill
• Coating thickness readings taken from each batch

None of this is extra cost — it is how the plant runs every day. If a buyer asks us for it on the first order, they get it.

Project Parameters at a Glance

The figures behind this build, for comparison against your own project:

The Result

What This Means for Your Enclosure Project

None of the equipment above is exotic — 12 kW lasers and 100-tonne press brakes are common. The difference is that XCWY owns all of it in one building, under one quality system, with one engineer accountable from drawing to packing. When you send us an enclosure drawing, you get a process route and a tolerance plan, not just a number.
