Sheet Metal Bending Design Guide: Radius, Relief, and Tolerance

Choose Radius and Forming Method

Within sheet metal bending design guide: radius, relief, and tolerance, treat choose radius and forming method as a controlled engineering choice rather than a drawing afterthought. Inside radius depends on material, thickness, temper, grain direction, punch radius, die opening, and whether the bend is air-formed or bottomed. Avoid treating radius as a purely cosmetic CAD value. A radius near material thickness is often a reasonable conversation starter for ductile grades, but harder aluminum, stainless steel, and bends parallel to rolling direction may require more generous geometry. When documenting choose radius and forming method, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the choose radius and forming method requirement. Apply tight limits only where choose radius and forming method affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around choose radius and forming method, approve a representative first article before committing production material or tooling.

Calculate Bend Allowance

For sheet metal bending design guide: radius, relief, and tolerance, resolve calculate bend allowance before production data is released. The flat length depends on bend angle, inside radius, thickness, and the neutral-axis position expressed through a K-factor or bend deduction. Generic tables are useful for estimates, not final production across every press, tool set, and alloy lot. Let the fabricator apply validated deductions to the formed model. Control the finished dimensions, while marking any customer-supplied flat as reference unless it is experimentally proven. When documenting calculate bend allowance, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the calculate bend allowance requirement. Apply tight limits only where calculate bend allowance affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around calculate bend allowance, approve a representative first article before committing production material or tooling.

Protect Holes and Edges Near Bends

In sheet metal bending design guide: radius, relief, and tolerance, a review of protect holes and edges near bends must connect geometry, material behavior, tooling access, and inspection. A hole or slot placed too close to a bend may stretch, ovalize, or pull the adjacent flange. Increase setback, add a relief, or create the feature after bending if its location is critical. Bend relief should extend beyond the tangent zone and be wide enough to avoid tearing without leaving an unacceptable notch. Corner relief also prevents overlapping material where two flanges meet. When documenting protect holes and edges near bends, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the protect holes and edges near bends requirement. Apply tight limits only where protect holes and edges near bends affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around protect holes and edges near bends, approve a representative first article before committing production material or tooling.

Manage Springback and Grain Direction

Within sheet metal bending design guide: radius, relief, and tolerance, treat manage springback and grain direction as a controlled engineering choice rather than a drawing afterthought. Elastic recovery opens a bend after load removal, with magnitude influenced by strength, modulus, radius-to-thickness ratio, tooling, and angle. Operators compensate through overbend and process settings, but variable incoming temper can shift results. Bending across the rolling direction generally reduces cracking risk in sensitive materials. Show grain restrictions only when function requires them because they reduce nesting efficiency and raise material cost. When documenting manage springback and grain direction, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the manage springback and grain direction requirement. Apply tight limits only where manage springback and grain direction affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around manage springback and grain direction, approve a representative first article before committing production material or tooling.

Dimension Formed Parts Correctly

For sheet metal bending design guide: radius, relief, and tolerance, resolve dimension formed parts correctly before production data is released. Dimension from functional datums on the finished form, not from inaccessible theoretical intersections. Avoid redundant combinations of flange length, overall width, and bend position that overconstrain the same geometry. Angular tolerances propagate over long flanges; XCWY states ±0.5° capability on its 3,200 mm press brake, but resulting tip displacement grows with flange length and setup conditions. Apply profile controls where they communicate function better. When documenting dimension formed parts correctly, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the dimension formed parts correctly requirement. Apply tight limits only where dimension formed parts correctly affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around dimension formed parts correctly, approve a representative first article before committing production material or tooling.

Plan Sequences and Verify Results

In sheet metal bending design guide: radius, relief, and tolerance, a review of plan sequences and verify results must connect geometry, material behavior, tooling access, and inspection. Successive bends can collide with the punch, die, back gauge, or already formed flanges. Model tool access, minimum return flange, box depth, and part rotation before release. Large panels may need staged bends and support to control sag. Inspect angle, flange position, and twist on a stable fixture, then confirm mating fit. A first-off bend coupon can establish deduction and springback before the complete blank is consumed. When documenting plan sequences and verify results, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the plan sequences and verify results requirement. Apply tight limits only where plan sequences and verify results affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around plan sequences and verify results, approve a representative first article before committing production material or tooling.

Engineering Decision Table

RFQ and Drawing Checklist

1. Define the functional objective and failure modes—sheet metal bending design guide.
2. Attach matching 3D and revision-controlled 2D files—sheet metal bending design guide.
3. State material grade, temper, thickness, and substitution rules—sheet metal bending design guide.
4. Identify datums and critical-to-function dimensions—sheet metal bending design guide.
5. Separate cosmetic surfaces from nonappearance zones—sheet metal bending design guide.
6. Specify edge break, burr direction, and sharp-edge restrictions—sheet metal bending design guide.
7. Call out finish standard, color, gloss, masking, and test method—sheet metal bending design guide.
8. Provide prototype, launch, and expected annual quantities—sheet metal bending design guide.
9. Agree measurement equipment, sampling, and report format—sheet metal bending design guide.
10. Confirm joining hardware, weld symbols, and assembly sequence—sheet metal bending design guide.
11. Review packaging protection for surfaces and formed features—sheet metal bending design guide.
12. Resolve open DFM questions before approving material or tooling—sheet metal bending design guide.

Manufacturing Evidence — Sheet Metal Bending Design

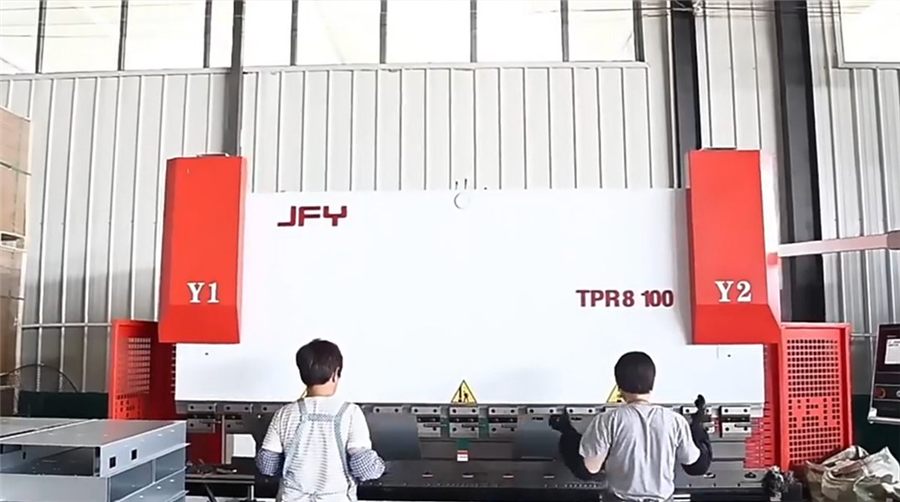

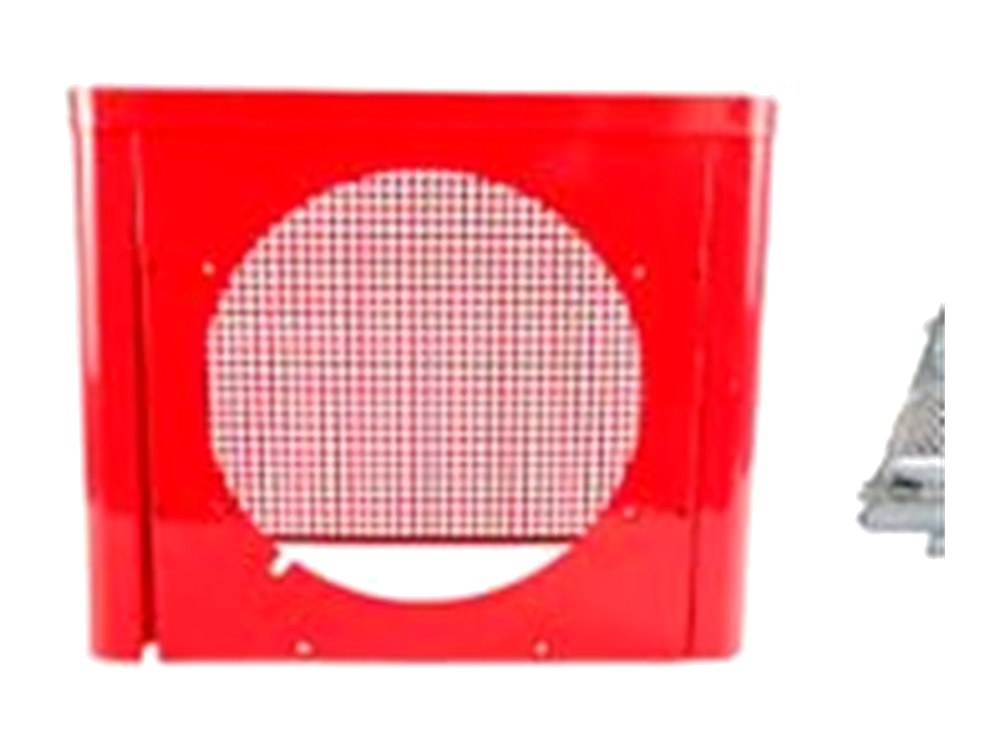

The images below come from the XCWY site asset library and show the plant, equipment, inspection areas and representative parts already published for Sheet Metal Bending Design.
