First Article Inspection for Metal Parts: Plan, Report, and Approval
First Article Inspection for Metal Parts: Plan, Report, and Approval is a practical engineering reference for teams that need manufacturable metal parts without hiding risk behind generic rules. A useful FAI ties every drawing requirement to traceable evidence from a representative manufacturing route and clearly controls deviations. The guide explains how to translate function into process choices, tolerances, inspection points, and supplier questions. It also shows where prototype evidence should replace assumptions. XCWY has supported metal-part production since 1998 and can combine stamping, deep drawing, laser cutting, bending, five-axis machining, welding, PEM insertion, finishing coordination, and CMM inspection. Available equipment includes 25–400-ton presses, a 12 kW laser, a 3,200 mm press brake, and a DMU38 five-axis center. The operating quality system is ISO 9001:2015, certificate 34025Q30296R0S. Use this first article inspection metal parts resource to prepare a clearer RFQ, compare feasible routes, and agree acceptance criteria before material or tooling is committed.
Request a Drawing Review
Attach the drawing, revision, material, quantity, critical tolerances, finish and target date. The inquiry is saved in the site database and emailed to the XCWY team.
Define the FAI Trigger and Scope
Within first article inspection for metal parts: plan, report, and approval, treat define the fai trigger and scope as a controlled engineering choice rather than a drawing afterthought. Require a first article for a new part, supplier, tool, process route, material, significant revision, relocation, or restart after major repair when risk warrants it. State whether the submission is full or delta. FAI demonstrates that one defined production route can meet requirements; it is not proof of long-term capability and does not replace ongoing sampling or process control. When documenting define the fai trigger and scope, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the define the fai trigger and scope requirement. Apply tight limits only where define the fai trigger and scope affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around define the fai trigger and scope, approve a representative first article before committing production material or tooling.
Freeze the Technical Baseline
For first article inspection for metal parts: plan, report, and approval, resolve freeze the technical baseline before production data is released. Record drawing number and revision, model revision, specification versions, purchase order, material, finish, tooling identity, and approved deviations. Resolve conflicts before inspection. Balloon every dimensional note, geometric control, material requirement, finish callout, and functional test with a unique characteristic number. The results table should map directly to those balloons so reviewers can find evidence without interpretation. When documenting freeze the technical baseline, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the freeze the technical baseline requirement. Apply tight limits only where freeze the technical baseline affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around freeze the technical baseline, approve a representative first article before committing production material or tooling.
Use Representative Production Conditions
In first article inspection for metal parts: plan, report, and approval, a review of use representative production conditions must connect geometry, material behavior, tooling access, and inspection. Manufacture the article with the intended material, tooling, machine route, operators or qualified setup, feeds, welding procedure, hardware, finish, and inspection methods whenever possible. A hand-finished prototype may answer a design question but should not silently qualify an automated process. Record any nonrepresentative condition and plan a later production-representative submission. Preserve material and process traceability through outsourced finishing. When documenting use representative production conditions, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the use representative production conditions requirement. Apply tight limits only where use representative production conditions affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around use representative production conditions, approve a representative first article before committing production material or tooling.
Choose Measurement Methods

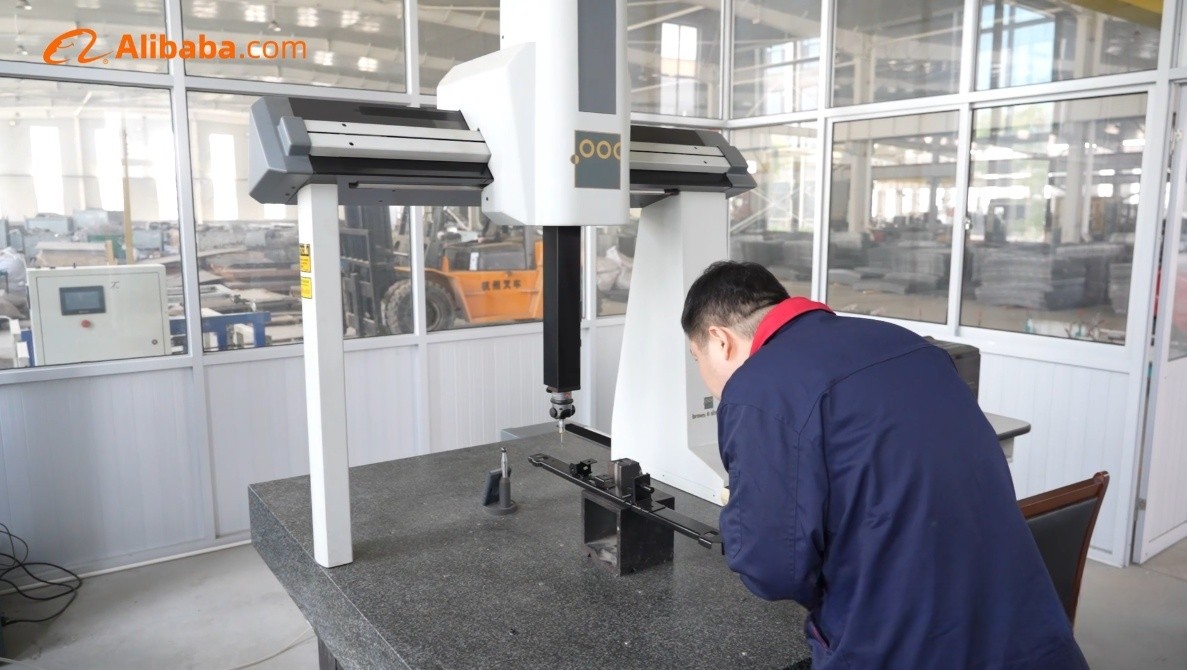

Within first article inspection for metal parts: plan, report, and approval, treat choose measurement methods as a controlled engineering choice rather than a drawing afterthought. Match equipment resolution, uncertainty, access, and fixturing to each tolerance. CMM inspection is useful for datum-based profiles and coordinate relationships, while micrometers, height gauges, pins, optical systems, surface instruments, or functional gauges may be better for other characteristics. XCWY has CMM capability. Define alignment to drawing datums, temperature assumptions, free-state or restrained condition, and the method for flexible sheet parts. When documenting choose measurement methods, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the choose measurement methods requirement. Apply tight limits only where choose measurement methods affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around choose measurement methods, approve a representative first article before committing production material or tooling.
Compile the Report Package
For first article inspection for metal parts: plan, report, and approval, resolve compile the report package before production data is released. Include the ballooned drawing, results with nominal and limits, actual values, pass/fail status, equipment identification, calibration status, inspector, date, material certificates, process certificates, finish evidence, and required test reports. Add photographs only as supporting context, not as substitutes for measurements. Clearly identify concessions and missing results. Keep units and decimal precision consistent enough to prevent ambiguous rounding decisions. When documenting compile the report package, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the compile the report package requirement. Apply tight limits only where compile the report package affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around compile the report package, approve a representative first article before committing production material or tooling.
Review, Disposition, and Control Changes
In first article inspection for metal parts: plan, report, and approval, a review of review, disposition, and control changes must connect geometry, material behavior, tooling access, and inspection. Engineering and quality should review failures against function, not normalize them because a part appears usable. Correct the root cause, update controlled documents, and resubmit affected characteristics or a full FAI according to agreed scope. Approval should identify the exact revision and conditions accepted. Store the baseline so later tool repairs, supplier changes, or process moves can be compared and trigger a deliberate delta review. When documenting review, disposition, and control changes, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the review, disposition, and control changes requirement. Apply tight limits only where review, disposition, and control changes affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around review, disposition, and control changes, approve a representative first article before committing production material or tooling.
Engineering Decision Table
| Condition | Recommendation | Why |
|---|---|---|
| Unproven geometry—first article inspection metal parts | Run a representative prototype | Evidence reveals springback, distortion, access, and inspection risks in first article inspection metal parts. |
| Functional characteristic—first article inspection metal parts | Define datum-based measurement | Critical first article inspection metal parts controls need unambiguous acceptance evidence. |
| Cosmetic-only feature—first article inspection metal parts | Set an appearance-zone limit | A bounded first article inspection metal parts standard avoids unnecessary precision cost. |
| Low volume or changing design—first article inspection metal parts | Defer dedicated tooling | A flexible first article inspection metal parts route preserves revision freedom. |
| Stable repeat demand—first article inspection metal parts | Evaluate dedicated tooling or gauges | Upfront first article inspection metal parts engineering can reduce cycle time and variation. |
| Approved input changes—first article inspection metal parts | Perform a documented delta review | Substitution can change first article inspection metal parts dimensions, corrosion, or appearance. |
| Sector certification required—first article inspection metal parts | Confirm compliance before sourcing | XCWY does not claim ISO 13485, IATF 16949, AS9100, or UL. |
RFQ and Drawing Checklist
- Define the functional objective and failure modes—first article inspection metal parts.
- Attach matching 3D and revision-controlled 2D files—first article inspection metal parts.
- State material grade, temper, thickness, and substitution rules—first article inspection metal parts.
- Identify datums and critical-to-function dimensions—first article inspection metal parts.
- Separate cosmetic surfaces from nonappearance zones—first article inspection metal parts.
- Specify edge break, burr direction, and sharp-edge restrictions—first article inspection metal parts.
- Call out finish standard, color, gloss, masking, and test method—first article inspection metal parts.
- Provide prototype, launch, and expected annual quantities—first article inspection metal parts.
- Agree measurement equipment, sampling, and report format—first article inspection metal parts.
- Confirm joining hardware, weld symbols, and assembly sequence—first article inspection metal parts.
- Review packaging protection for surfaces and formed features—first article inspection metal parts.
- Resolve open DFM questions before approving material or tooling—first article inspection metal parts.
Manufacturing Evidence — First Article Inspection
The images below come from the XCWY site asset library and show the plant, equipment, inspection areas and representative parts already published for First Article Inspection.
Frequently Asked Questions
When should an engineer request DFM feedback for first article inspection metal parts?
Request first article inspection metal parts feedback before freezing the drawing and after any material, tolerance, finish, or volume change. An early first article inspection metal parts review leaves room to alter geometry before tooling or purchase orders are released.
What files make a first article inspection metal parts RFQ technically complete?
For first article inspection metal parts, provide matching 3D and controlled 2D data, material grade and temper, quantities, finish, critical dimensions, inspection expectations, and assembly context.
Can XCWY support one first article inspection metal parts prototype?
XCWY offers MOQ 1 when the selected first article inspection metal parts route is practical. A flexible prototype route may be proposed before production tooling is justified for first article inspection metal parts.
How quickly can XCWY quote a first article inspection metal parts project?
XCWY targets a first article inspection metal parts quotation within three business hours after receiving a complete package. Unclear first article inspection metal parts specifications, missing models, or complex tooling require clarification first.
Which quality certification applies to first article inspection metal parts?
Work involving first article inspection metal parts operates under XCWY’s ISO 9001:2015 system, certificate 34025Q30296R0S. For first article inspection metal parts, XCWY does not claim ISO 13485, IATF 16949, AS9100, or UL certification.
What is the most important project-specific check for first article inspection metal parts?
Ensure the inspected article represents the intended production material, tooling, routing, joining, finishing, and datum setup; disclose every temporary or nonproduction condition.
