CNC Milling vs Sheet Metal: An Engineering Selection Guide

Start with Geometry and Load Path

Within cnc milling vs sheet metal: an engineering selection guide, treat start with geometry and load path as a controlled engineering choice rather than a drawing afterthought. CNC milling removes material and supports thick sections, pockets, sculpted surfaces, bearing seats, and precise orthogonal relationships. Sheet metal begins with near-uniform gauge stock and gains stiffness through bends, hems, beads, ribs, and joined panels. A solid-looking bracket may become a lighter formed channel, while a housing with deep bearing bores may remain a machined component. When documenting start with geometry and load path, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the start with geometry and load path requirement. Apply tight limits only where start with geometry and load path affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around start with geometry and load path, approve a representative first article before committing production material or tooling.

Compare Tolerance Capability

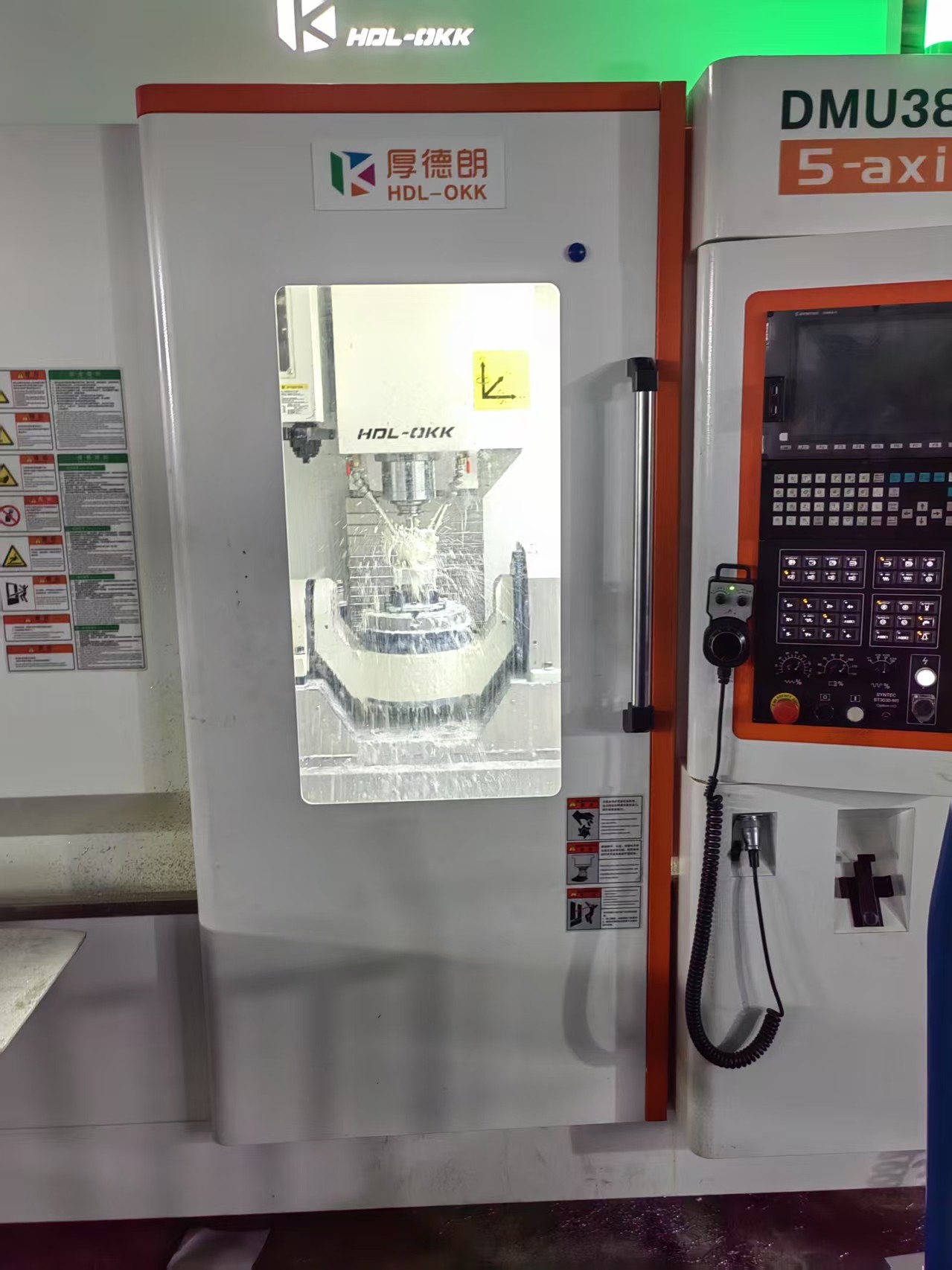

For cnc milling vs sheet metal: an engineering selection guide, resolve compare tolerance capability before production data is released. Five-axis machining can hold demanding local relationships when the setup, tool reach, thermal control, and inspection support them; XCWY’s DMU38 capability is stated to ±0.005 mm. Sheet-metal dimensions combine cutting, bend deduction, angle variation, springback, and feature proximity. XCWY’s 3,200 mm press brake is stated to ±0.5° angular capability, not universal linear tolerance for every part. When documenting compare tolerance capability, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the compare tolerance capability requirement. Apply tight limits only where compare tolerance capability affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around compare tolerance capability, approve a representative first article before committing production material or tooling.

Model Cost at Real Quantities

In cnc milling vs sheet metal: an engineering selection guide, a review of model cost at real quantities must connect geometry, material behavior, tooling access, and inspection. Machining cost is driven by stock, setup, cycle time, tool wear, fixturing, and removed volume. Sheet-metal cost includes flat-pattern cutting, forming setups, special tooling, joining, and finishing. At prototype quantities, laser cutting plus standard bends can be economical. At higher repeat volume, dedicated forming or stamping may lower unit labor, while complex machined datums can still justify milling. When documenting model cost at real quantities, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the model cost at real quantities requirement. Apply tight limits only where model cost at real quantities affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around model cost at real quantities, approve a representative first article before committing production material or tooling.

Account for Material Efficiency

Within cnc milling vs sheet metal: an engineering selection guide, treat account for material efficiency as a controlled engineering choice rather than a drawing afterthought. A heavily pocketed billet creates chips and purchases more mass than the finished part. A nested sheet-metal blank can improve yield, but irregular outlines, grain restrictions, and cosmetic protection reduce nesting freedom. Compare buy-to-fly ratio, remnant usability, standard stock availability, and recycling. Also consider whether a thinner formed shape meets buckling, impact, thermal, and threaded-joint needs. When documenting account for material efficiency, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the account for material efficiency requirement. Apply tight limits only where account for material efficiency affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around account for material efficiency, approve a representative first article before committing production material or tooling.

Evaluate Assembly and Finishing

For cnc milling vs sheet metal: an engineering selection guide, resolve evaluate assembly and finishing before production data is released. Converting one machined body into several sheet components introduces bends, welds, fasteners, seams, and tolerance accumulation. The trade can still win when panels provide access or replaceability. Conversely, consolidating many brackets into a machined part may eliminate assembly but increase cycle time. Anodizing, passivation, powder coating, plating, and brushing behave differently on edges, welds, and machined surfaces. When documenting evaluate assembly and finishing, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the evaluate assembly and finishing requirement. Apply tight limits only where evaluate assembly and finishing affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around evaluate assembly and finishing, approve a representative first article before committing production material or tooling.

Use a Hybrid Architecture

In cnc milling vs sheet metal: an engineering selection guide, a review of use a hybrid architecture must connect geometry, material behavior, tooling access, and inspection. Many efficient designs combine laser-cut and bent panels with machined inserts, rails, bosses, or heat-sink faces. Specify how the precise element locates to the formed shell and how it will be inspected after joining. PEM nuts can provide threads in thin sheet; welded or riveted inserts may carry higher loads. Prototype the interface before optimizing either process in isolation. When documenting use a hybrid architecture, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the use a hybrid architecture requirement. Apply tight limits only where use a hybrid architecture affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around use a hybrid architecture, approve a representative first article before committing production material or tooling.

Engineering Decision Table

RFQ and Drawing Checklist

1. Define the functional objective and failure modes—CNC milling vs sheet metal.
2. Attach matching 3D and revision-controlled 2D files—CNC milling vs sheet metal.
3. State material grade, temper, thickness, and substitution rules—CNC milling vs sheet metal.
4. Identify datums and critical-to-function dimensions—CNC milling vs sheet metal.
5. Separate cosmetic surfaces from nonappearance zones—CNC milling vs sheet metal.
6. Specify edge break, burr direction, and sharp-edge restrictions—CNC milling vs sheet metal.
7. Call out finish standard, color, gloss, masking, and test method—CNC milling vs sheet metal.
8. Provide prototype, launch, and expected annual quantities—CNC milling vs sheet metal.
9. Agree measurement equipment, sampling, and report format—CNC milling vs sheet metal.
10. Confirm joining hardware, weld symbols, and assembly sequence—CNC milling vs sheet metal.
11. Review packaging protection for surfaces and formed features—CNC milling vs sheet metal.
12. Resolve open DFM questions before approving material or tooling—CNC milling vs sheet metal.
