Metal Bending Radius Chart and Design Guide

Design Scope and Design Guide

A useful engineering program begins by defining the real component family rather than requesting a generic metal part. Typical scope includes inside bend radii, thickness ratios, grain-direction effects, ductility cautions, tooling relationships, K-factor inputs, and test-bend recommendations. Each item carries different load paths, access needs, appearance zones, and production volumes, so XCWY reviews the assembly context before proposing a process. Important interfaces commonly include punch radius, die opening, material thickness, bend angle, grain direction, flange length, nearby holes, and cosmetic face. These features should be dimensioned from stable datums instead of accumulated edge chains. A 3D model helps visualize the assembly, but a revision-controlled 2D drawing remains essential for tolerances, material, finish, burr direction, and inspection notes. Early DFM examines bend relief, inside radii, hole-to-edge distance, tool approach, weld access, hardware installation, and realistic measurement points. Prototype quantities may favor laser cutting and brake forming, while repeat demand can justify hard tooling or progressive operations. Machining is reserved for features that truly need it. XCWY does not assume service loads, environmental class, or legal compliance on the buyer’s behalf. Buyers should provide mating-part data, critical load cases, restricted substances, and any governing standards. That shared definition keeps design responsibility visible, reduces quotation ambiguity, and prevents a low-cost process choice from creating expensive assembly problems later.

Materials and Surface Decisions and Design Guide

Material selection should connect mechanical function, fabrication behavior, corrosion exposure, appearance, and supply condition. XCWY can process CRS, Q235, galvanized steel, SS304/316/316L, AL5052/6061, C110/C260, and 65Mn compared only at a screening level because temper and lot condition can change formability. A grade name alone is not enough: thickness, temper or hardness, applicable standard, grain limits, and certificate expectations should appear in the RFQ. Substitution is not made silently because strength, elongation, conductivity, bend response, weldability, and coating adhesion can change. Surface choices include pre-finished galvanized surfaces and post-forming powder, zinc, anodizing, brushing, polishing, or passivation reviewed for cracking, marking, masking, and appearance. The drawing should state the process, color or appearance, thickness or class where relevant, masking locations, and cosmetic acceptance zones. Threads, PEM interfaces, grounding points, gasket lands, press fits, and weld areas may require protection from finish buildup. Mixed metals also need review for galvanic risk, especially where moisture can remain. Forming direction and visible grain matter for brushed or polished surfaces, while rack marks and contact points must be assigned to noncritical areas when possible. Finish approval can use a customer standard, measurable specification, or signed sample rather than subjective words such as “good” or “smooth.” Material certificates and finish certificates can be included when requested and defined. These decisions allow sourcing, tooling, forming, welding, and inspection teams to work from the same technical baseline.

Manufacturing Route and Capacity and Design Guide

XCWY selects the manufacturing route from geometry, volume, tolerance, material, and finish rather than forcing every design through one machine. Six production lines combine presses from 25 to 400T with a 12kW laser, a 3,200 mm press brake, five-axis machining, welding, hardware insertion, and inspection. The laser has stated cutting limits of 25 mm carbon steel, 20 mm stainless steel, 12 mm aluminum, and 6 mm copper; actual edge quality and speed still depend on grade, thickness, geometry, gas, and acceptance criteria. The brake provides ±0.5° angle capability under appropriate setup, while five-axis machining can reach ±0.005 mm where part shape, fixturing, material stability, and measurement method support it. Prototype blanks can validate fit before tooling investment. Higher volumes may move to compound, transfer, or progressive stamping after demand and tool economics are confirmed. Laser, TIG, MIG, and spot welding are available, with sequence and fixturing planned to limit distortion. PEM insertion can consolidate assembly, but hole preparation, sheet hardness, edge distance, and push-out needs must be specified. Process transitions are documented so that cut parts, formed parts, weldments, inserted hardware, and finished goods remain linked to the correct revision. The resulting route aims for repeatability without claiming that every advertised machine capability applies to every feature.

Quality Planning and Failure Control and Design Guide

Quality planning starts with likely failures, not with a final inspection checklist. Relevant concerns include outside cracking, excessive springback, flange distortion, hole elongation, tool marks, inconsistent radius, and using a generic ratio for a certified material condition. XCWY reviews which characteristics prevent these outcomes, how those characteristics are produced, and which method can verify them. CMM inspection is available for suitable dimensional features, while dedicated gauges, calibrated hand tools, visual standards, coating tests, fit checks, and functional fixtures may be more appropriate elsewhere. The control plan should identify critical dimensions, sampling level, inspection stage, measurement condition, and reaction path. Welded or formed assemblies need datums that remain stable after processing; flexible edges are poor inspection references. Cosmetic requirements benefit from defined viewing distance, lighting, allowed defect size, and zone classification. Material identity, hardware type, finish batch, and revision status can be captured according to the agreed traceability level. First-article evidence is useful before volume release, and PPAP Level 3 is available when requested, particularly when the customer supplies the required format and submission expectations. XCWY is ISO 9001:2015 registered under 34025Q30296R0S, but it is not IATF, ISO 13485, AS9100, or UL certified. Any sector-specific approval or product certification remains a separately defined customer requirement and must not be inferred from the quality-system certificate.

RFQ, Documentation, and Commercial Handoff and Design Guide

A complete custom parts RFQ shortens review time and produces a more comparable quotation. The preferred package contains released drawing identifying inside radius, angle, material grade and temper, thickness, grain restrictions, cosmetic side, critical dimensions, tolerances, and approved deviations. Include target quantity, prototype and annual demand, delivery location, desired schedule, and whether tooling is customer-owned. Native CAD plus a readable PDF reduces interpretation risk; conflicting dimensions or revisions should be resolved before release. XCWY targets a quotation within three business hours after receiving complete information, although complex tooling, unusual testing, or incomplete specifications may require clarification before a firm offer. MOQ begins at one piece, enabling fit checks or engineering samples, but one-piece economics should not be projected onto production demand. NDA support is available for confidential custom parts files. Change control matters after award: material, tolerance, finish, hardware, packaging, or source changes should follow an agreed approval path. PPAP Level 3 can be prepared when requested, but its contents, sample quantity, timing, and customer templates belong in the order scope. Packaging should address part nesting, moisture, edge protection, cosmetic separation, and label traceability rather than being treated as an afterthought. XCWY will not invent customer names, approvals, test reports, or end-product certifications. A disciplined handoff aligns the released design, commercial assumptions, inspection evidence, and shipment method before production begins. All values on this page are design references; the released drawing controls production and acceptance.

Specifications and Scope

Typical Applications

Risks Buyers Should Resolve Before Release

Manufacturing Evidence — Bending Radius Reference

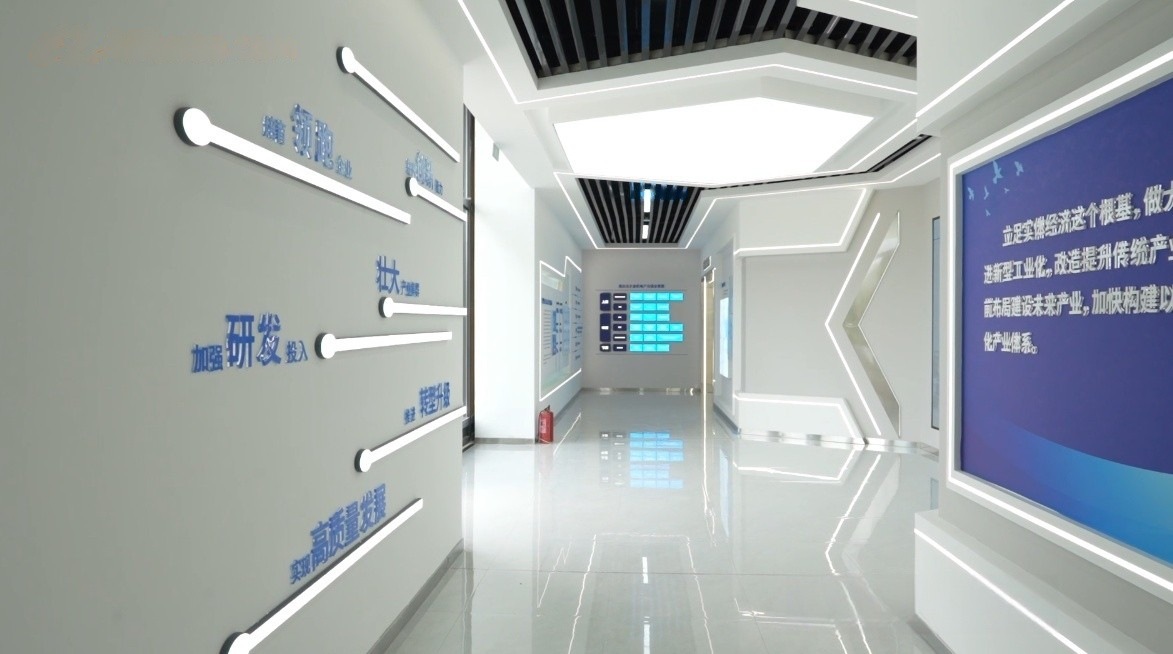

The images below come from the XCWY site asset library and show the plant, equipment, inspection areas and representative parts already published for Bending Radius Reference.

Answers to the questions buyers ask most often are collected in our custom metal fabrication FAQ.

Metal Bending Radius Chart by Material and Thickness

Minimum bend radius is a forming limit, not a cosmetic detail: specify an inside radius tighter than the material can hold and the outer fibre runs out of stretch and cracks. Because the physics scale with thickness, the limit is expressed as a multiple of thickness (T) rather than a fixed dimension, which is what lets one rule travel across gauges.

Recommended minimum inside bend radius by material

Material (typical temper)	Character	Min inside radius (multiple of T)	Example at 1.5 mm
Mild / cold-rolled steel (low-carbon)	Soft, ductile	0.5T – 1T	0.75 – 1.5 mm
Hot-rolled steel (A36 / A1011)	Ductile, scaled surface	1T – 1.5T	1.5 – 2.25 mm
304 / 316 stainless (annealed)	Ductile but work-hardens fast	0.5T – 2T (use 1T as default)	0.75 – 3.0 mm
5052-H32 aluminium	Excellent former	0.5T across grain / 1T with grain	0.75 – 1.5 mm
6061-T6 aluminium	Hard, low ductility, crack-prone	2T – 3T thin / 4T – 6T heavier	3.0 – 9.0 mm
3003-H14 aluminium	Soft, very formable	0.5T – 1T (near 0T annealed)	0.75 – 1.5 mm

Typical practice-based ranges drawn from published forming references and fabricator data. The lower end of each range assumes a favourable case (softer temper, bending across the grain, air forming with adequate die width); the upper end is the conservative call for a harder temper or a bend running with the grain. Ranges cross-checked against the American Machine Tools minimum bend radius chart, the Xometry Pro bend radius table and the published Protocase bend-radii charts. Always confirm the callout with the shop that will form the part.

Minimum inside radius by thickness band (alternative rule of thumb)

Material	T: 1–6 mm	T: 6–12 mm	T: 12–25 mm
Aluminium	1 × T	1.5 × T	2 – 3 × T
Steel	0.8 × T	1.2 × T	1.5 – 2.5 × T
Stainless steel	2 × T	2.5 × T	3 – 4 × T

Source: Xometry Pro, Minimum Bend Radius For Sheet Metal: Reference Table & Calculator (28 November 2024). This band-based table is more conservative than the alloy-based table above for stainless in thin gauges — when the two disagree, design to the larger radius.

Air-bending reference: die opening, natural inside radius and minimum flange

In air bending the inside radius is produced by the relationship between the punch nose, the die V-opening and the material — not by the punch tip alone. The table below gives the natural inside radius and minimum flange length that fall out of a given V-opening for structural steel at roughly 400 MPa, formed to 90°.

Die V-opening (mm)	Natural inside radius ir (mm)	Minimum flange length b (mm)	V-opening (mm)	Natural inside radius ir (mm)	Minimum flange length b (mm)
6	1.0	4	50	8.0	35
8	1.3	5.5	63	10.0	45
10	1.6	7	80	13.0	55
12	2.0	8.5	100	16.0	71
16	2.6	11	125	20.0	89
20	3.3	14	160	26.0	113
25	4.0	17.5	200	33.0	140
32	5.0	22	250	41.0	175
40	6.5	28	320	53.0	226

Source: Xometry Pro air-bend force chart (November 2024), applicable to structural steels of approximately 400 MPa yield strength formed to 90°. Two engineering approximations hold across this table and are used by the calculator above: ir ≈ V / 6 (verified across all 20 published rows, maximum deviation 6.7%) and b ≈ 0.7 × V (maximum deviation 5.0%). For aluminium, multiply the air-bend force values by 0.5; for stainless steel by 1.5. The chart is for reference only.

How the radius connects to the flat pattern

Inside radius does not only decide whether a part cracks — it also sets how long to cut the flat blank. When a sheet bends, the neutral axis does not sit exactly at mid-thickness; it shifts toward the inside of the bend by an amount that depends on the radius and the material. The K-factor locates that neutral axis: it is the distance from the inside surface to the neutral axis, divided by the material thickness. Typical K-factors in sheet metal fall roughly between 0.30 and 0.50, trending higher as the inside radius grows relative to thickness.

The K-factor feeds the bend allowance — the arc length of material consumed by the bend — which in turn sets the bend deduction, the amount subtracted from the sum of the outside flange dimensions to obtain the correct flat length. Change the inside radius and the K-factor changes, the bend allowance changes, and the flat pattern changes with it. That is why a radius callout is never only a strength decision: it quietly rewrites the developed length of every affected flange.

Quantity	Formula
Outside radius	Or = Ir + T
Bend allowance (arc length)	BA = A × (π / 180) × (R + K·T)
Bend deduction	BD = 2 × (R + T) × tan(A / 2) − BA
Flat length, two flanges	Lflat = L1 + L2 − BD
Natural inside radius in air bending	Ir ≈ V / 6 (≈400 MPa steel, 90°)
Minimum flange length in air bending	b ≈ 0.7 × V

A = bend angle (degrees), R = inside radius, T = material thickness, K = K-factor, V = die V-opening. K-factor values vary with material, temper and tooling; confirm against your own forming trials before releasing a flat pattern to production.

What actually causes a bend to crack

• Radius too tight for the temper. The single most common cause. 6061-T6 in particular needs several times the radius of soft aluminium or mild steel because the T6 temper buys its strength directly out of the ductility budget.
• Bend running with the grain. Rolled sheet has a grain direction. Bending across the grain is the best case; bending parallel to it is the worst case and cracks far more readily, especially on aluminium. On formable alloys this can be the difference between a 0.5T and a 1T bend.
• Work hardening. Austenitic stainless such as 304 and 316 work-hardens aggressively — the act of bending stiffens the metal at the bend and consumes the remaining ductility. That is why stainless can feel forgiving in thin gauge yet crack in heavier gauge at a radius that would be safe in mild steel.
• Springback not accounted for. Every bend relaxes when the ram lifts, and the angle opens slightly. Higher-strength materials and larger radii spring back more; air bending leaves the most springback, while bottoming and coining set the radius more firmly.

Bend radius rules of thumb

• Default to 1T when unsure. Safe for the great majority of mild steel, stainless and formable aluminium in common gauges.
• Push the radius up for high-strength alloys and hard tempers. 6061-T6, half-hard and full-hard tempers, and heavier-gauge work-hardening stainless all want more radius.
• Use one radius across the whole part. A single consistent inside radius lets every bend be formed with the same punch and die; mixed radii force tooling changes, add setups and add cost.
• Specify a minimum, not an exact value. Giving the shop a floor rather than a hard number lets them use standard tooling instead of grinding a custom punch.
• Bigger is safer. A radius larger than the minimum is almost always easier to form, more repeatable and less crack-prone — the minimum is a cliff edge, not a parking spot.

Press Brake Bend Calculator

Enter the material, thickness and the die V-opening you plan to use. The calculator returns the recommended minimum inside radius, the natural inside radius the die will produce, the minimum flange length, and the flat-pattern allowance for the bend.

Material Mild / cold-rolled steel (low-carbon) Hot-rolled steel (A36 / A1011) 304 / 316 stainless (annealed) 5052-H32 aluminium 6061-T6 aluminium 3003-H14 aluminium Sheet thickness t (mm) Die V-opening (mm) Bend angle (degrees) K-factor (0.30–0.50, default 0.33) Outside flange 1, L1 (mm) Outside flange 2, L2 (mm)

Calculate Reset

Reference values only. Radii, flange limits and flat-pattern allowances vary with temper, grain direction, tooling condition and forming method. XCWY confirms the achievable values on your drawing before release — send a part for a manufacturing review.
