High-Volume Metal Parts Production

Define the high-volume metal parts production requirement

A useful high-volume metal parts production inquiry begins with function, not only geometry. At volume, xCWY reviews the drawing together with material designation, expected quantity, surface requirement, critical features, and the relationship between mating parts. The purpose is to choose a route that reflects qualifying repeat manufacturing capacity and process control. For high-volume metal parts production, that route may combine planning production around six lines, presses from 25 to 400 tons, a 15,000 square meter site, 78 employees, joining, insertion, sub-assembly, and CMM capability. At volume, processes are selected according to the released definition; the availability of a machine does not by itself mean every tolerance, thickness, or shape is appropriate for that process. At volume, buyers should identify dimensions that govern fit, sealing, alignment, movement, or downstream assembly, while separating them from noncritical dimensions. The supported material list for high-volume metal parts production includes cold rolled steel, Q235, galvanized steel, SS304, SS316, SS316L, AL5052, AL6061-T6, C110 copper, C260 brass, and 65Mn. At volume, grade and temper should be written directly on the drawing or purchase specification, because family names alone can conceal meaningful differences in forming, machining, welding, conductivity, corrosion behavior, and finish response. At volume, xCWY can start from an MOQ of one piece, which allows the commercial path to match prototypes, short runs, or repeat programs. At volume, a three-business-hour quotation response helps establish the first commercial view, but manufacturability still depends on usable files and clear requirements. At volume, an NDA can be requested before sensitive project information is exchanged.

Select processes around the part

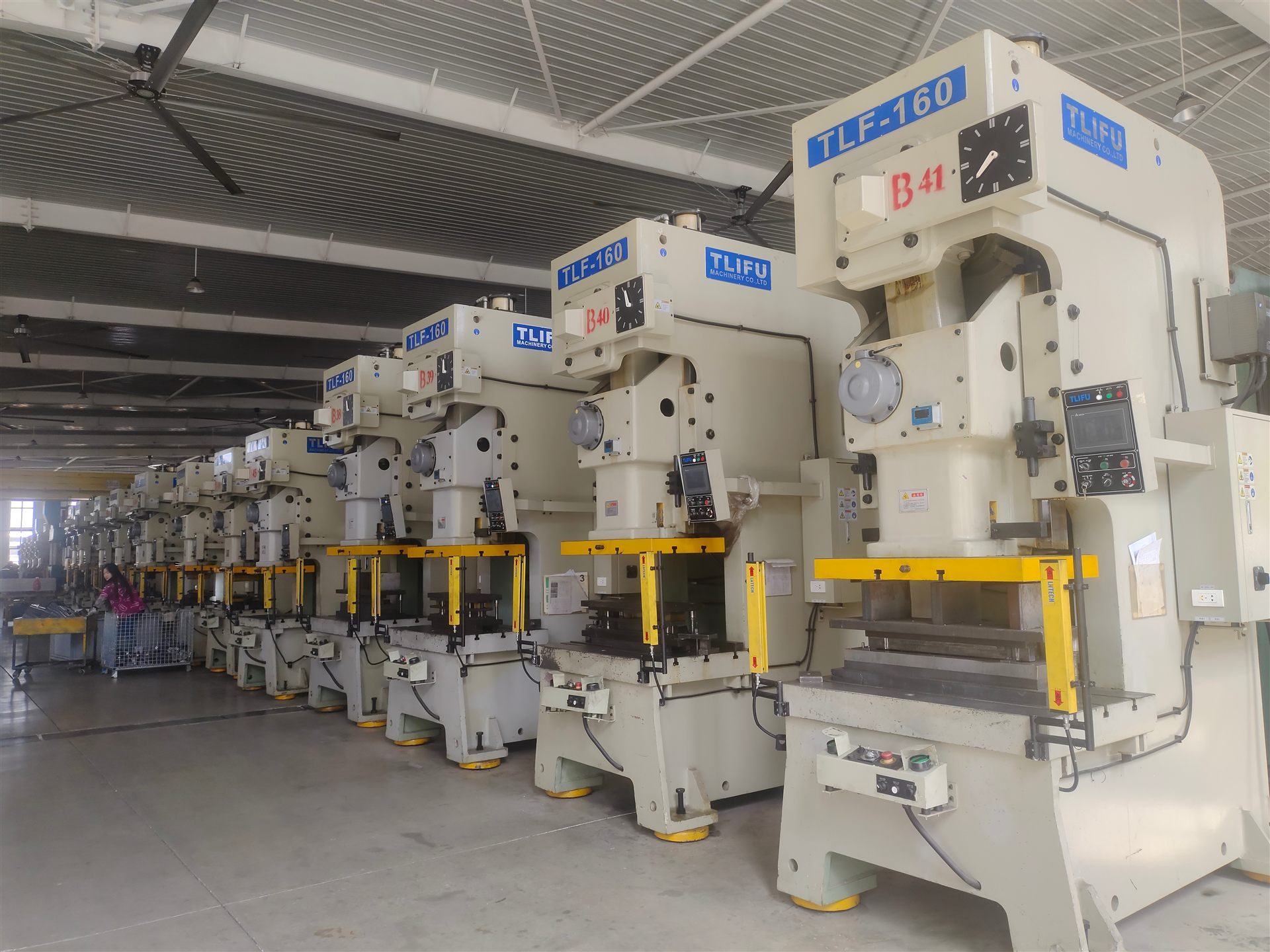

Process selection for high-volume metal parts production should follow the part rather than a fixed menu. At volume, xCWY has presses rated from 25 to 400 tons for stamping and forming work, plus a 12,000 W fiber laser for profile cutting. At volume, published laser capacities are carbon steel to 25 mm, stainless steel to 20 mm, aluminum to 12 mm, and copper to 6 mm. At volume, these figures describe equipment capability, not an automatic promise that every contour and tolerance is feasible at the maximum thickness. Bending for high-volume metal parts production can be reviewed around the JFY TPR8-100 CNC press brake, with a 3,200 mm working length and a stated angular capability of ±0.5°. At volume, feature position, flange length, bend relief, grain direction, and springback assumptions should be assessed together. At volume, where milled faces, pockets, holes, or multi-side access are needed, the HDL-OKK DMU38 five-axis machine carries a stated capability of ±0.005 mm. At volume, the applicable part tolerance must still be agreed from geometry, datum structure, material, and inspection method. Joining options for high-volume metal parts production include laser, TIG, MIG, and spot welding. At volume, pEM insertion and sub-assembly can be added when the drawing defines hardware type, orientation, access, and acceptance conditions. This process range gives a sourcing team assessing whether a supplier can organize stable recurring output after requirements and tooling are agreed a practical basis for comparing one-process and combined-process solutions.

Control material and surface expectations

Material and finish notes strongly influence high-volume metal parts production. At volume, xCWY lists cold rolled steel, Q235, galvanized steel, SS304, SS316, SS316L, AL5052, AL6061-T6, C110 copper, C260 brass, and 65Mn among its available materials. At volume, the quotation should reference a specific grade, thickness or stock form, and any required condition instead of allowing an undefined equivalent. At volume, that discipline is especially important when a design relies on bend response, hardness, corrosion behavior, conductivity, weldability, or cosmetic appearance. Listed finish routes for high-volume metal parts production include powder coating, zinc plating, anodizing, brushing, polishing, and passivation. At volume, not every finish applies to every metal, so the requested combination must be reviewed. At volume, drawings should state color or appearance criteria where relevant, masked or contact areas, visible faces, grain direction for brushed surfaces, and whether dimensional requirements apply before or after finishing. At volume, threads, PEM hardware, tight fits, and electrical contact zones may need explicit protection instructions. At volume, finish language such as “standard,” “clean,” or “good appearance” is too open for dependable sourcing. A better high-volume metal parts production package separates functional protection from cosmetic expectations and identifies inspection lighting or reference samples only when the buyer actually supplies or approves them. At volume, xCWY can then align fabrication sequence, handling, and outsourced or in-house finish coordination with the stated requirement without inventing an acceptance level.

Plan inspection and qualification

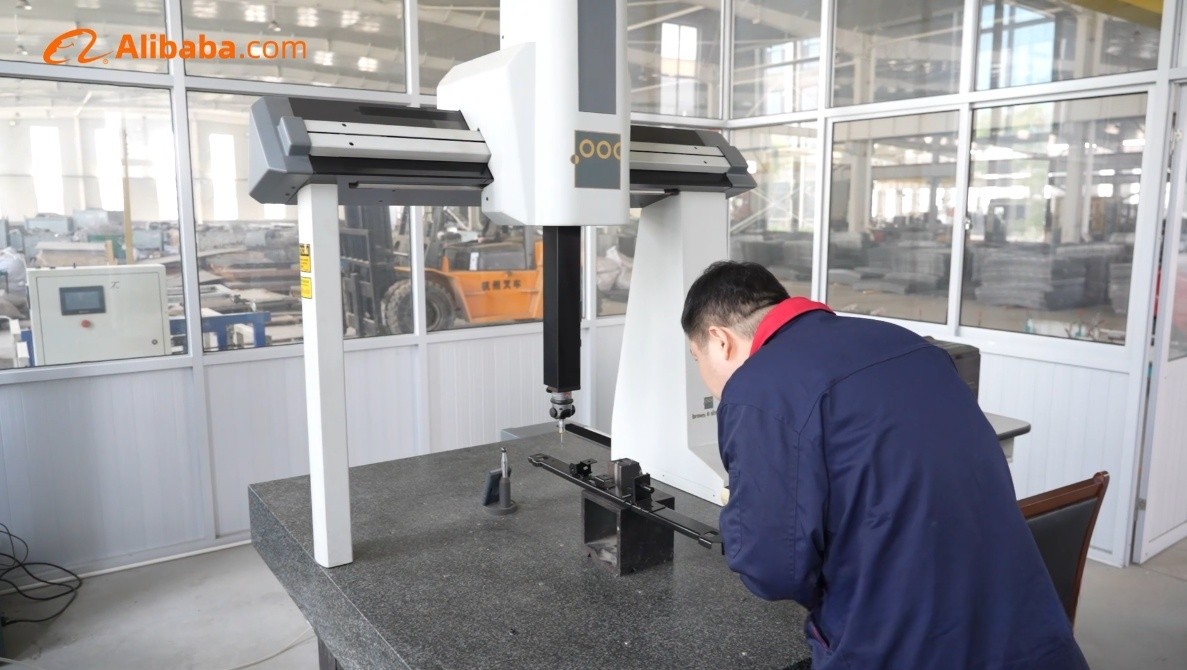

Quality planning for high-volume metal parts production starts before the first cut. At volume, xCWY operates under ISO 9001:2015 registration 34025Q30296R0S and has CMM inspection capability. At volume, the registration supports a quality-management framework, while the drawing and purchase requirements still define what must be measured for the specific order. At volume, buyers should mark critical-to-function characteristics, datum references, thread requirements, weld expectations, finish checkpoints, and any records requested with the shipment. A CMM can support dimensional verification for suitable high-volume metal parts production features, but inspection method must fit accessibility, surface condition, tolerance, and part stability. At volume, not every characteristic is best measured on a CMM, and the presence of inspection equipment should not be interpreted as an unstated guarantee for all dimensions. At volume, a clear inspection plan identifies sampling or full-check expectations, measurement stage, and the document format needed for review. At volume, xCWY does not claim ISO 13485, IATF 16949, AS9100, or UL certification. At volume, projects that contractually require one of those credentials should not treat ISO 9001:2015 as a substitute. For a sourcing team assessing whether a supplier can organize stable recurring output after requirements and tooling are agreed, this transparent boundary makes qualification more efficient: confirm whether the stated ISO registration and available process controls satisfy the program, then place any additional verification obligations directly in the inquiry and purchase documents.

Build a quotation-ready RFQ

To request a useful high-volume metal parts production quotation, provide 2D drawings and available 3D data, revision level, material and thickness, order quantity, annual or repeat expectations if known, finish, hardware, weld notes, and inspection priorities. At volume, identify whether the request is for a one-piece evaluation, a low-volume batch, or recurring production. At volume, xCWY offers quotation response within three business hours when the information is sufficient, and the MOQ starts from one piece. At volume, an NDA is available on request for confidential files. At volume, the first review should resolve interfaces that drive risk: datums, mating locations, bend orientation, weld access, tool access, edge condition, hardware direction, visible surfaces, and packaging-sensitive areas. For high-volume metal parts production, changes should be recorded by revision rather than mixed through informal messages. At volume, if an alternative process is proposed, the buyer should approve any effect on geometry, material condition, finish, or inspection before release. This structured RFQ approach serves qualifying repeat manufacturing capacity and process control because commercial and technical assumptions become visible at the same time. At volume, it also gives XCWY a basis for deciding whether stamping, laser cutting, bending, five-axis machining, welding, insertion, sub-assembly, or a combination is appropriate. At volume, the result is not a generic capability claim; it is a traceable proposal tied to the submitted part definition and requested quantity.

Specifications and Scope

Typical Applications

Risks Buyers Should Resolve Before Release

Manufacturing Evidence — High-Volume Production

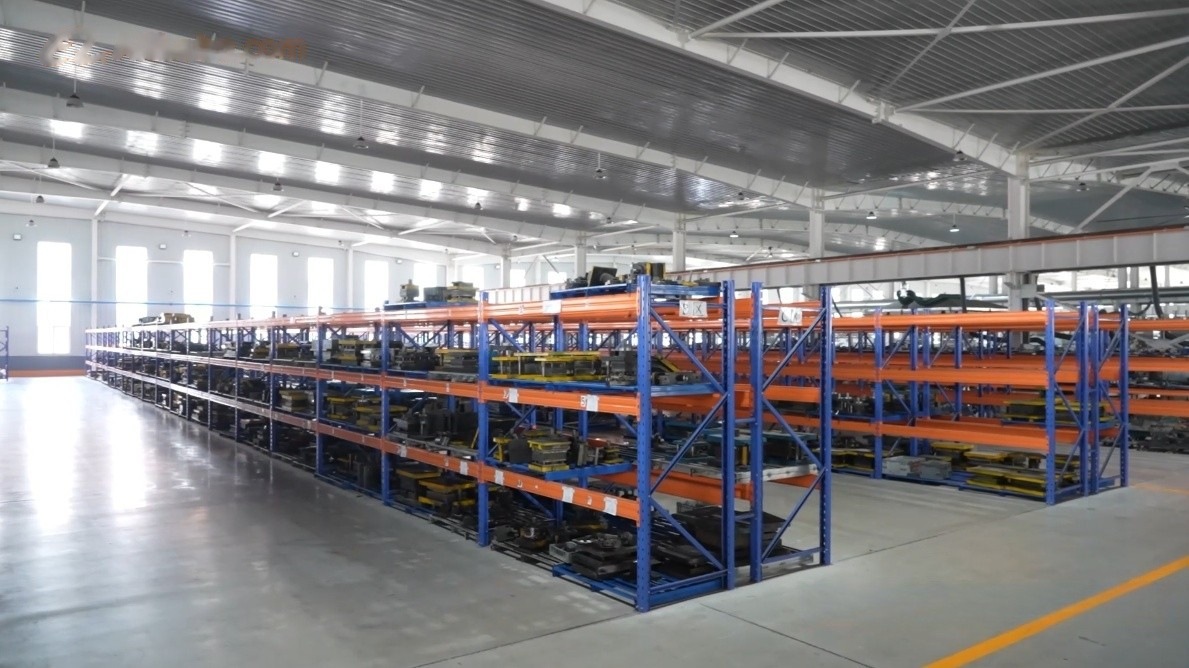

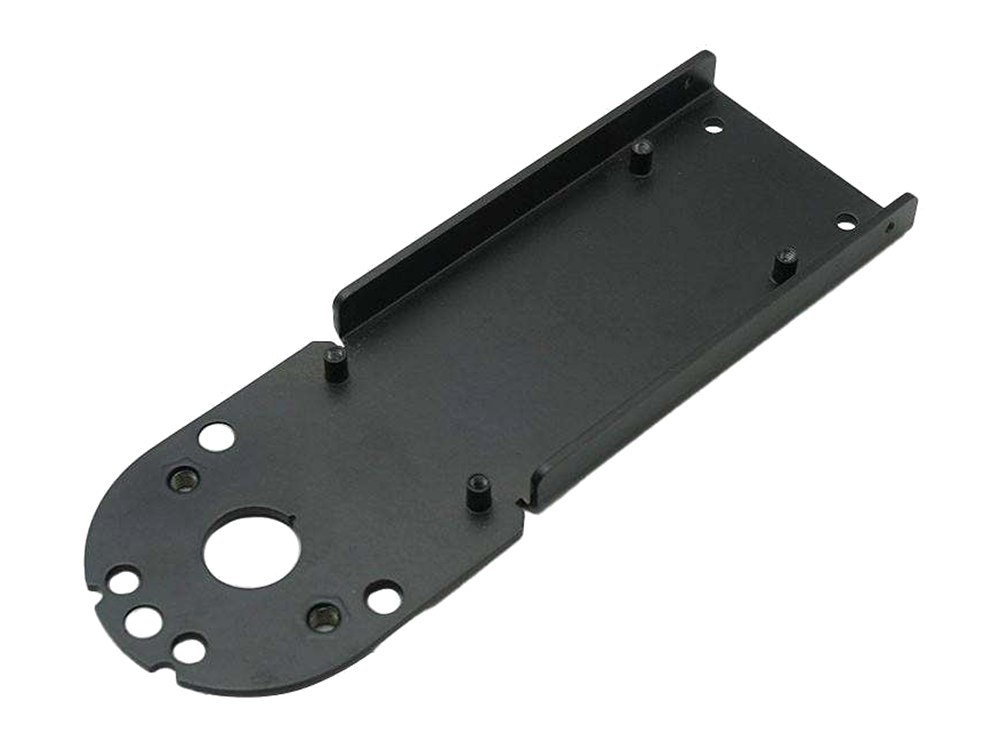

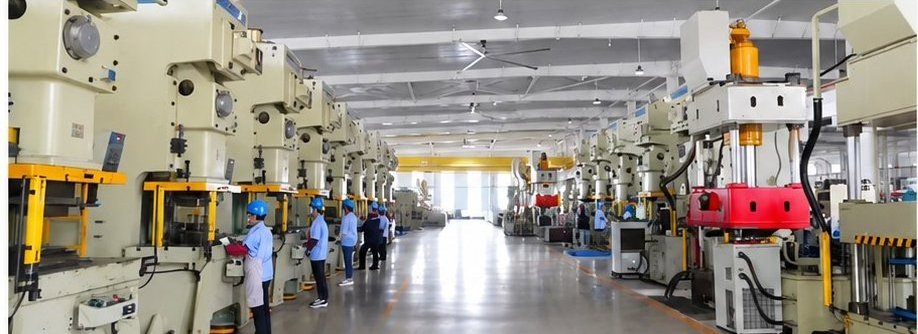

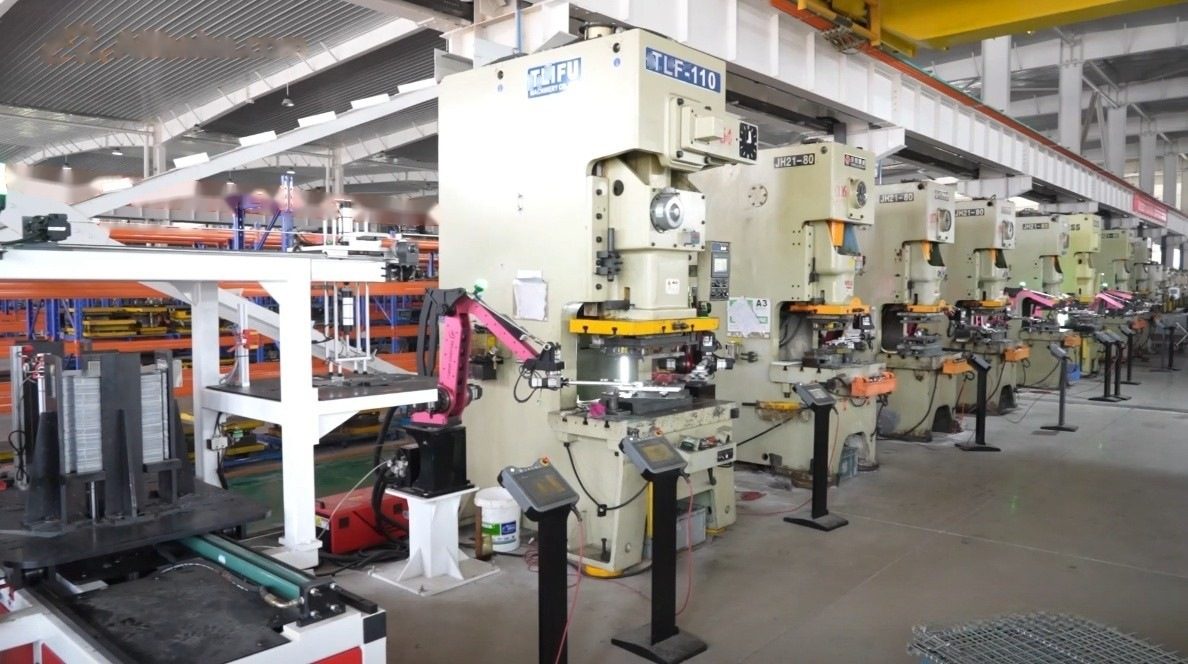

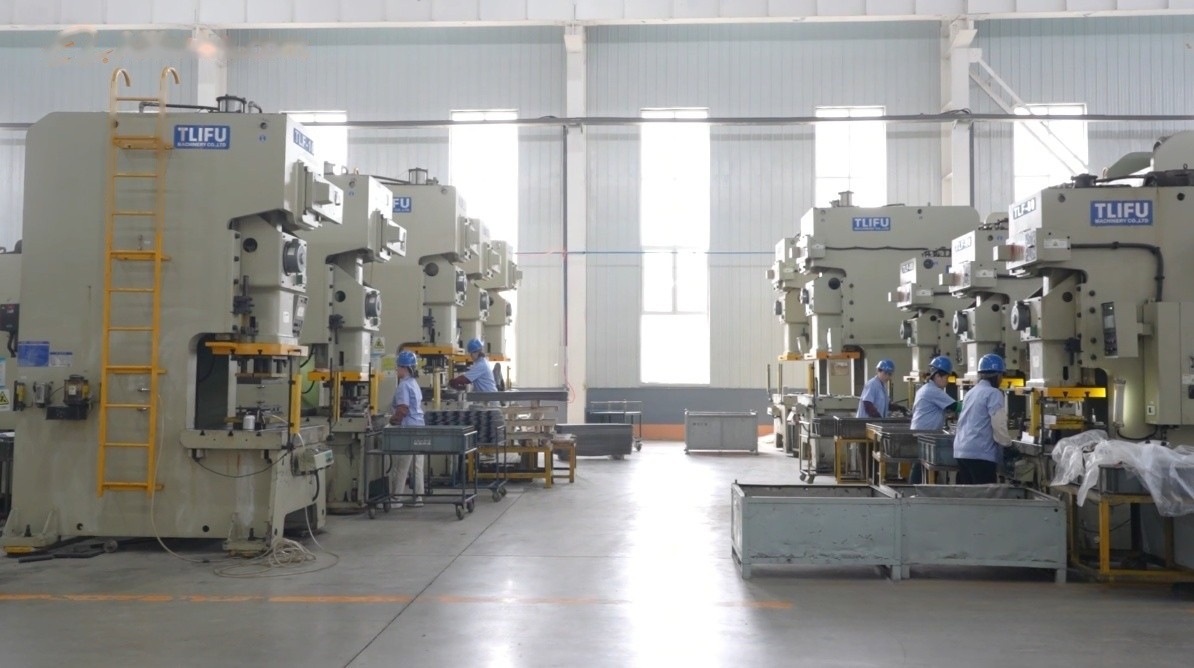

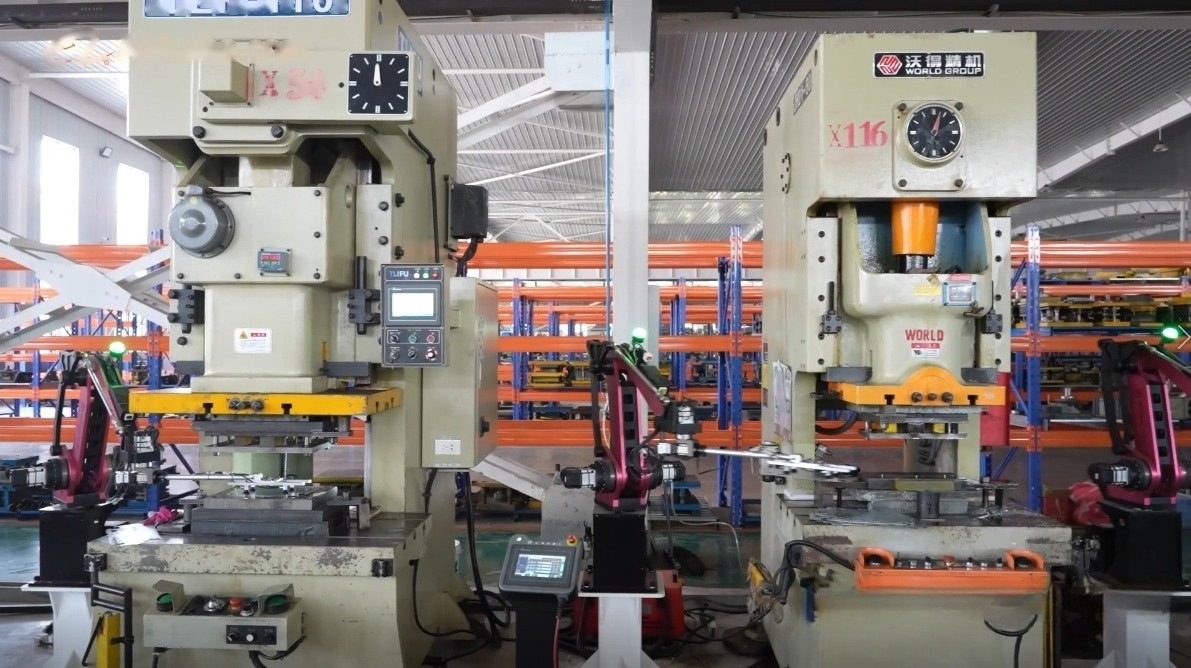

The images below come from the XCWY site asset library and show the plant, equipment, inspection areas and representative parts already published for High-Volume Production.

Frequently Asked Questions

Continue the Engineering Review
