Progressive Die Stamping Guide: Strip Layout to Production Control
Progressive Die Stamping Guide: Strip Layout to Production Control is a practical engineering reference for teams that need manufacturable metal parts without hiding risk behind generic rules. It follows the engineering chain from volume justification and strip layout through station sequencing, die protection, validation, and preventive maintenance. The guide explains how to translate function into process choices, tolerances, inspection points, and supplier questions. It also shows where prototype evidence should replace assumptions. XCWY has supported metal-part production since 1998 and can combine stamping, deep drawing, laser cutting, bending, five-axis machining, welding, PEM insertion, finishing coordination, and CMM inspection. Available equipment includes 25–400-ton presses, a 12 kW laser, a 3,200 mm press brake, and a DMU38 five-axis center. The operating quality system is ISO 9001:2015, certificate 34025Q30296R0S. Use this progressive die stamping guide resource to prepare a clearer RFQ, compare feasible routes, and agree acceptance criteria before material or tooling is committed.
Request a Drawing Review
Attach the drawing, revision, material, quantity, critical tolerances, finish and target date. The inquiry is saved in the site database and emailed to the XCWY team.
Confirm When Progressive Stamping Fits
Within progressive die stamping guide: strip layout to production control, treat confirm when progressive stamping fits as a controlled engineering choice rather than a drawing afterthought. Progressive tooling is attractive for repeat parts that can move through sequential stations while attached to a carrier, but tooling investment and change risk must be justified by volume and lifecycle. Stable geometry, suitable material strip, manageable tolerances, and downstream demand favor the method. Prototypes or uncertain designs may use laser cutting and forming first, followed by a deliberate transfer to production tooling. When documenting confirm when progressive stamping fits, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the confirm when progressive stamping fits requirement. Apply tight limits only where confirm when progressive stamping fits affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around confirm when progressive stamping fits, approve a representative first article before committing production material or tooling.
Develop the Strip Layout
For progressive die stamping guide: strip layout to production control, resolve develop the strip layout before production data is released. The strip layout establishes feed direction, pitch, carrier strength, material use, station sequence, pilots, and scrap removal. Rotate the part only if grain direction and surface requirements permit it. Balance forces across the die and leave enough carrier to transport the strip without stretch. Blank utilization matters, yet an aggressive nest that feeds unreliably can cost more through stops, damage, and inconsistent location. When documenting develop the strip layout, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the develop the strip layout requirement. Apply tight limits only where develop the strip layout affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around develop the strip layout, approve a representative first article before committing production material or tooling.
Sequence Stations and Forming Work
In progressive die stamping guide: strip layout to production control, a review of sequence stations and forming work must connect geometry, material behavior, tooling access, and inspection. Distribute piercing, notching, forming, drawing, restriking, tapping or insertion, and cut-off so the strip remains stable. Avoid making a critical feature before later forming will distort it unless the die includes compensation or restrike. Provide idle stations for future change or force balance where justified. Estimate press tonnage, energy, off-center load, shut height, and stroke for the complete simultaneous station load. When documenting sequence stations and forming work, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the sequence stations and forming work requirement. Apply tight limits only where sequence stations and forming work affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around sequence stations and forming work, approve a representative first article before committing production material or tooling.
Engineer Die Details and Protection
Within progressive die stamping guide: strip layout to production control, treat engineer die details and protection as a controlled engineering choice rather than a drawing afterthought. Use replaceable inserts in wear or high-risk areas, accessible adjustment, positive pilots, robust guidance, and controlled slug evacuation. Sensors can detect misfeed, buckle, part presence, short feed, or slug problems before a crash. Define die steel and coating from wear, adhesion, impact, and material. Maintenance access and spare strategy should be designed in rather than improvised after production begins. When documenting engineer die details and protection, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the engineer die details and protection requirement. Apply tight limits only where engineer die details and protection affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around engineer die details and protection, approve a representative first article before committing production material or tooling.
Control Feed, Lubrication, and Material
For progressive die stamping guide: strip layout to production control, resolve control feed, lubrication, and material before production data is released. Coil thickness, width, camber, hardness, burr, and surface condition affect progression. Straightener and feeder settings must produce repeatable pitch without marking the part. Apply lubricant consistently and confirm compatibility with cleaning, welding, and finishing. Record material lot, press, speed, feed, sensor status, and die revision. Process monitoring supports diagnosis but does not replace dimensional and functional verification. When documenting control feed, lubrication, and material, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the control feed, lubrication, and material requirement. Apply tight limits only where control feed, lubrication, and material affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around control feed, lubrication, and material, approve a representative first article before committing production material or tooling.
Validate and Maintain Production
In progressive die stamping guide: strip layout to production control, a review of validate and maintain production must connect geometry, material behavior, tooling access, and inspection. Tryout should progress from safe single strokes to representative speed while checking carrier behavior, force, scrap flow, dimensions, surface, and part release. Approve a first article against a ballooned drawing, then establish production gauges and sampling for critical features. Track wear trends and service the die by count and condition. Preserve approved setup data and control all repairs because a small insert change can shift capability. When documenting validate and maintain production, separate mandatory functional requirements from preferences, then identify the datums, interfaces, cosmetic zones, load paths, and acceptance evidence relevant to this decision. The drawing, CAD model, material callout, finish note, and revision should give one consistent definition of the validate and maintain production requirement. Apply tight limits only where validate and maintain production affects fit, motion, safety, sealing, or interchangeability; a blanket tolerance can add setup and inspection cost without improving performance. If uncertainty remains around validate and maintain production, approve a representative first article before committing production material or tooling.
Engineering Decision Table
| Condition | Recommendation | Why |
|---|---|---|
| Unproven geometry—progressive die stamping guide | Run a representative prototype | Evidence reveals springback, distortion, access, and inspection risks in progressive die stamping guide. |
| Functional characteristic—progressive die stamping guide | Define datum-based measurement | Critical progressive die stamping guide controls need unambiguous acceptance evidence. |
| Cosmetic-only feature—progressive die stamping guide | Set an appearance-zone limit | A bounded progressive die stamping guide standard avoids unnecessary precision cost. |
| Low volume or changing design—progressive die stamping guide | Defer dedicated tooling | A flexible progressive die stamping guide route preserves revision freedom. |
| Stable repeat demand—progressive die stamping guide | Evaluate dedicated tooling or gauges | Upfront progressive die stamping guide engineering can reduce cycle time and variation. |
| Approved input changes—progressive die stamping guide | Perform a documented delta review | Substitution can change progressive die stamping guide dimensions, corrosion, or appearance. |
| Sector certification required—progressive die stamping guide | Confirm compliance before sourcing | XCWY does not claim ISO 13485, IATF 16949, AS9100, or UL. |
RFQ and Drawing Checklist
- Define the functional objective and failure modes—progressive die stamping guide.
- Attach matching 3D and revision-controlled 2D files—progressive die stamping guide.
- State material grade, temper, thickness, and substitution rules—progressive die stamping guide.
- Identify datums and critical-to-function dimensions—progressive die stamping guide.
- Separate cosmetic surfaces from nonappearance zones—progressive die stamping guide.
- Specify edge break, burr direction, and sharp-edge restrictions—progressive die stamping guide.
- Call out finish standard, color, gloss, masking, and test method—progressive die stamping guide.
- Provide prototype, launch, and expected annual quantities—progressive die stamping guide.
- Agree measurement equipment, sampling, and report format—progressive die stamping guide.
- Confirm joining hardware, weld symbols, and assembly sequence—progressive die stamping guide.
- Review packaging protection for surfaces and formed features—progressive die stamping guide.
- Resolve open DFM questions before approving material or tooling—progressive die stamping guide.
Manufacturing Evidence — Progressive Die Stamping

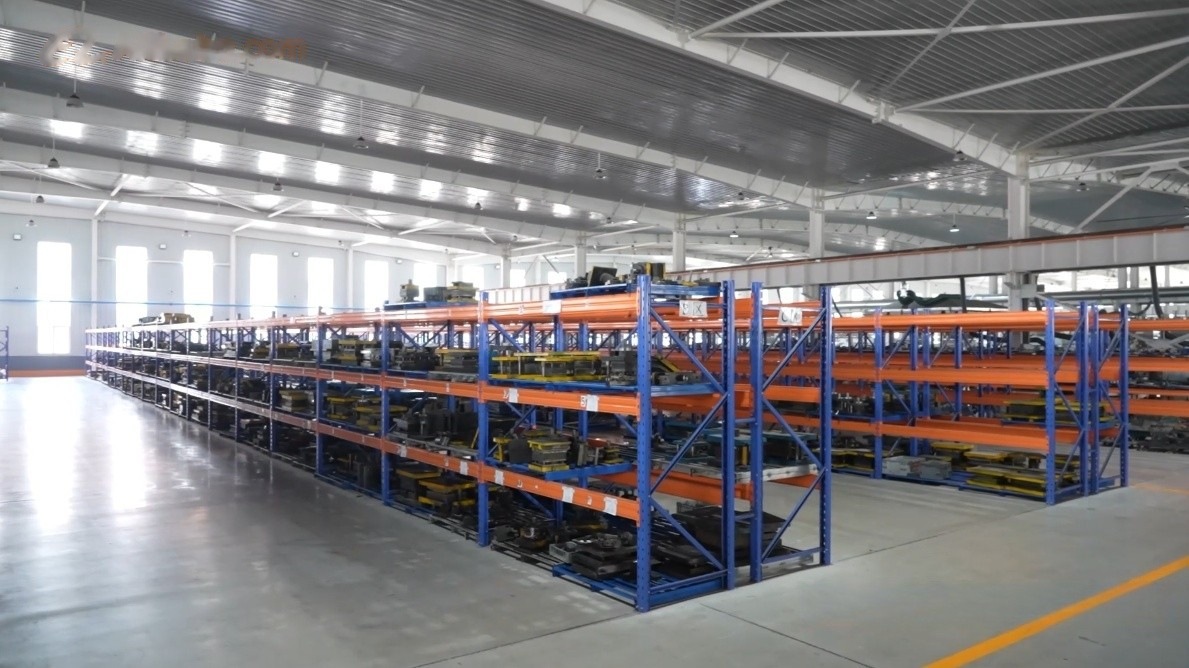

The images below come from the XCWY site asset library and show the plant, equipment, inspection areas and representative parts already published for Progressive Die Stamping.
Frequently Asked Questions
When should an engineer request DFM feedback for progressive die stamping guide?
Request progressive die stamping guide feedback before freezing the drawing and after any material, tolerance, finish, or volume change. An early progressive die stamping guide review leaves room to alter geometry before tooling or purchase orders are released.
What files make a progressive die stamping guide RFQ technically complete?
For progressive die stamping guide, provide matching 3D and controlled 2D data, material grade and temper, quantities, finish, critical dimensions, inspection expectations, and assembly context.
Can XCWY support one progressive die stamping guide prototype?
XCWY offers MOQ 1 when the selected progressive die stamping guide route is practical. A flexible prototype route may be proposed before production tooling is justified for progressive die stamping guide.
How quickly can XCWY quote a progressive die stamping guide project?
XCWY targets a progressive die stamping guide quotation within three business hours after receiving a complete package. Unclear progressive die stamping guide specifications, missing models, or complex tooling require clarification first.
Which quality certification applies to progressive die stamping guide?
Work involving progressive die stamping guide operates under XCWY’s ISO 9001:2015 system, certificate 34025Q30296R0S. For progressive die stamping guide, XCWY does not claim ISO 13485, IATF 16949, AS9100, or UL certification.
What is the most important project-specific check for progressive die stamping guide?
Approve the production process at representative feed speed and material condition, including carrier stability, force, scrap evacuation, sensors, dimensions, and a documented maintenance baseline.
